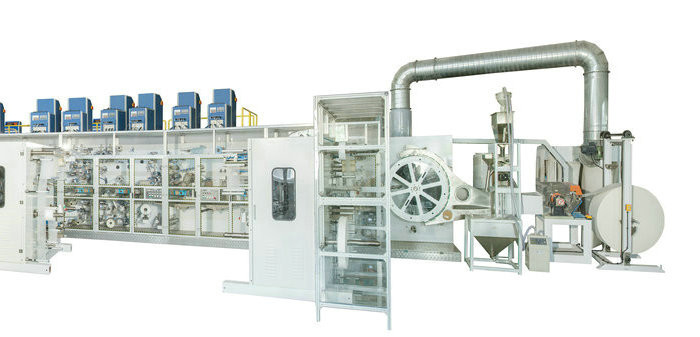

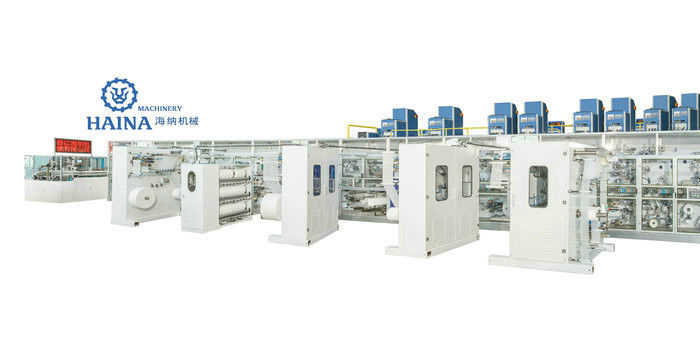

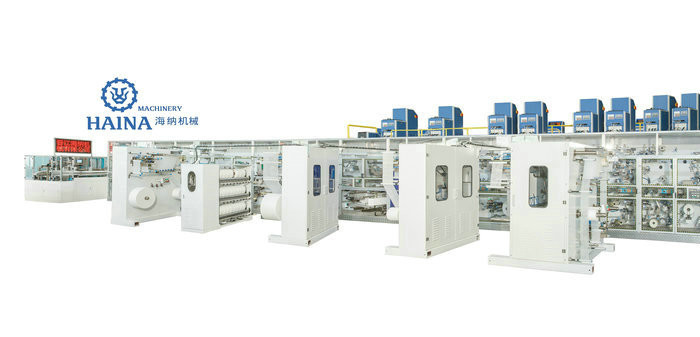

120T Baby Diaper Production Line

Minimum Order Quantity : 1SET Price : Negotiatable
Packaging Details : Seaworthy Packing Delivery Time : 5 Months After Receiving Deposit and Confirm Product Drawing
Payment Terms : T/T Supply Ability : 70 Machines Per Year
Place of Origin: JINJIANG, CHINA Brand Name: HAINA
Certification: ISO9001:2015 Model Number: LK500

Detail Information

Design Speed: 600ppm Stable Working Speed: 500ppm
Condition: Brand New Place Of Origin: Fujian, China
Votage: 380V Power: 400KW
Weight: 100tons Dimension: 45m*9m*5m
Product Size: M/L/L/XL Machine Color: Customized
Machine Direction: Customize
Highlight:

120T Baby Diaper Production Line

,

400KW Diaper Production Line

,

HAINA baby diaper equipment

Product Description

High Quality More Stable Baby Diaper Production Line





Main Technical Data



Working Speed(Production speed) 600pcs/minute(M)
Working Speed(Linear web speed) 500meters/minute
Power supply 380V 50HZ, Tri-phase
Installation power capacity 320~350KW
Air consumption 4000l/mn
Qualified rate ≥98%
Product width(min~max) 600~850mm
Product length(min~max) 650~1000mm
Dimensions(L×W×H, Meters) L: 25~33
W: 6~12
H: 3.5~4.5



Technical features


Compact design, easy operation&maintenance
Modular design, for future upgrading
Low consumption, high efficiency
Servo transmission
Touch screen for man-machine conversation
Auto record and calculation of process data
Main raw material auto splicing at zero speed
Inverter or servo unwinding with tension control
Web guiding controller
Sensor quality control systems
Material broken and lost inspection,
auto machine stop and defective
products auto rejection
Easy size changing and manufacture
CE approval



120T Baby Diaper Production Line 0



Raw Materials Specification



Item Number Raw material layer
1 Hydrophilic N.W.(for top sheet)
2 Hydrophobic N.W.(for standing cuff)
3 Acquisition&distribution layer N.W.
4 Fluff core pad
5 SAP(super absorbent polymer)
6 Upper tissue
7 Lower tissue
8 Back sheet PE
9 Fastening tab tapes
10 Frontal pad
11 Leg elastics
12 Leak elastics(for standing cuff)
13 Waist band
Options(for two fluff cores)
1 Fluff core padII
2 SAP applicatorII(super absorbent polymer)
Options(for clothlikes back sheet)
1 Back sheet(clothlikes)



120T Baby Diaper Production Line 1

120T Baby Diaper Production Line 2120T Baby Diaper Production Line 3120T Baby Diaper Production Line 4
