| Minimum Order Quantity : | 1SET | Price : | Negotiatable |
|---|---|---|---|
| Packaging Details : | Seaworthy Packing | Delivery Time : | 5 Months After Receiving Deposit and Confirm Product Drawing |
| Payment Terms : | T/T | Supply Ability : | 70 Machines Per Year |
| Place of Origin: | JINJIANG, CHINA | Brand Name: | HAINA |
|---|---|---|---|
| Certification: | ISO9001:2015 | Model Number: | LK500 |
|
Detail Information |
|||
| Condition: | New | Voltage: | 380V, 50HZ |
|---|---|---|---|
| Weight: | 120Tons | Stable Speed: | 500pcs/min |
| Machine Size: | 40m*8m*5m | Warranty: | 1 Year |
| Sizes: | M/L/XL/XXL | Efficiency: | ≥85% |
| Wastage: | ≤3% | Machine Color: | Customized |
| Highlight: | 500pcs/min Baby Diaper Production Line,500PPM diaper manufacturing plant,120T Baby Diaper Production Line |
||
Product Description

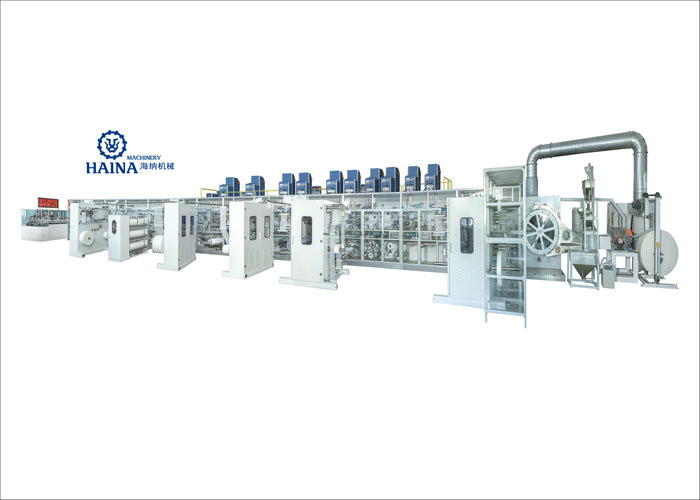

High Speed High Efficiency Training Pant Baby Diaper Production Line
Main Technical Data
| Design Machine Speed | 550pcs/minute |
| Stable Working Speed | 500pcs/minute |
| Power supply | 380V 50HZ, Tri-phase |
| Installed Power Capacity | 380KW |
| Air supply | Customer Prepare |
| Qualified Product Rate | ≥97% |
| Waist width of Diaper | 385mm |
| Product Length of Diaper | 400~550mm |
| Dimensions(L×W×H, Meters) | L: 40 W: 8 H: 4.5 |
Technical features
1. Compact design, easy to operate &maintenance
2. Modular design, easier for future upgrading
3. Low consumption, high efficiency
4. Servo or inverter transmission
5. Touch screen
6. Auto record and calculation of process data for day/week/month
7. Main raw material auto splicing at zero speed
8. Inverter or servo unwinding with tension control
9. Web guiding controller BST/FIFE
10. Sensor quality control systems
11. Material broken and lost inspection
12. Auto machine stop and defective
13. Defective Products auto rejection
14. Size changing easy
15. CE/ISO cerfificate
Raw material specifications
| No. | Raw materials |
| 1 | Hydrophilic Topsheet N.W. |
| 2 | Hydrophobic Legcuff N.W. |
| 3 | Acquisition&distribution layer N.W. |
| 4 | Fluff Pulp |
| 5 | SAP(super absorbent polymer) |
| 6 | Upper tissue/nNW |
| 7 | Lower tissue/NW |
| 8 | Back sheet PE |
| 9 | Back sheet(clothlikes) |
| 10 | Waist inner N.W. |
| 11 | Waist outer N.W. |
| 12 | Leg elastics |
| 13 | Leak elastics(for standing cuff) |
| 14 | Waist band |
| 15 | Waist elastics |
Machine Working Video :
https://youtu.be/kqjlgu-x6RY
Our Workshop
