| Minimum Order Quantity : | 1 SET | Price : | Negotiable |
|---|---|---|---|
| Packaging Details : | Film wrapped | Delivery Time : | 150 Days |
| Payment Terms : | L/C, T/T | Supply Ability : | 72 SETS/YEAR |
| Place of Origin: | CHINA | Brand Name: | HAINA |
|---|---|---|---|
| Certification: | CE | Model Number: | HNJX-HD1200 |
|
Detail Information |
|||
| Power Source: | 380V, 50HZ | Air Pressure: | 0.6 - 0.8 Mpa |
|---|---|---|---|
| Rejection Rate: | ≤3% | Dimensions(L×W×H): | 28*6*4 M |
| Design Speed: | 1200 PPM | Stabel Speed: | 1000 PPM |
| Machine Capacity: | 200 KW | Machine Weight: | 30 Tons |
| Highlight: | 1200pcs/Min Panty Liner Machine,1200PPM sanitary pad making machine,Full Servo PLC Panty Liner Machine |
||
Product Description

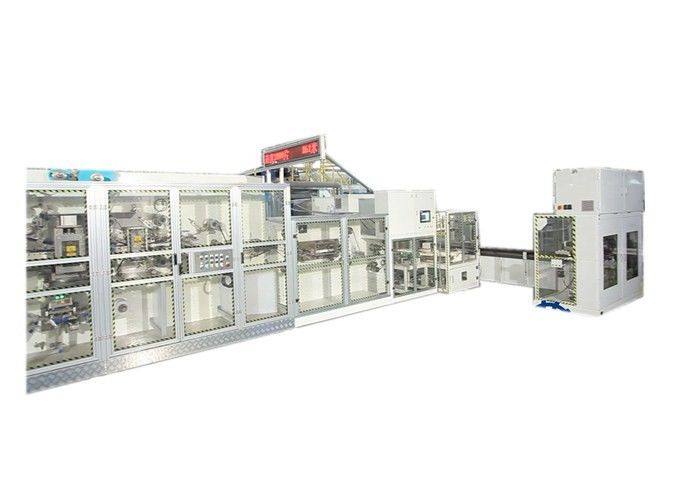

Full Servo PLC Control Women Panty Liner Machine 1200 pcs/min
Servo driven, intelligent HMI touch screen man-machine interface
Tension control with buffer system, automatic web guiding system, to ensure materials stable working at zero speed splice.
Servo drive, digital size change, ensure run synchronously at full process.
Servo drive, digital size change, ensure run synchronously at full process.
Safety guard for operating side, emergency stop switch, security identifier, safety pull wire at driven side.
Auto stacker and Packaging machine to be defined by customer need.
BST ,Germany/FIFE, USA
| Product type | Panty Liner |
| Design speed | 1200 pcs/min |
| Stable speed | 1000 pcs/min |
| Passing rate | ≥ 98% (Not include the glue applicator, Auto Splicing) |
| Installation capacity | 330kw |
| Compressed Air supply | 0.6-0.8Mpa |
| Machine size | 28M(L)*6M(W)*4M(H) |
| Machine weight | 30 tons |
Panty Liner Schematic View:
Introduction
Jinjiang Haina Machinery Co., Ltd is a very professional equipment manufacturer in China. Specializing in baby-diapers, adult-diapers, sanitary napkins machinery. With the spirit of keeping innovating and improving, Haina has made more achievements and earned very good reputation in this field during these years. Haina was listed on Hongkong exchange stock market successfully in 2020.(Stock code HK1645).
Global Market
Haina is listed on top three in domestic market in diaper machinery industry. With our innovative and striving spirit, global market is expanded. Haina has oversea customers from Philippines, Malaysia, Vietman, Indonesia, Turkey, Iran, Cambodia, Thailands, Singapore, Pakistan, Bangladesh, Uzbekistan, Congo, Kenya, Nigeria, Yemen, Sultan, Brazil, etc..

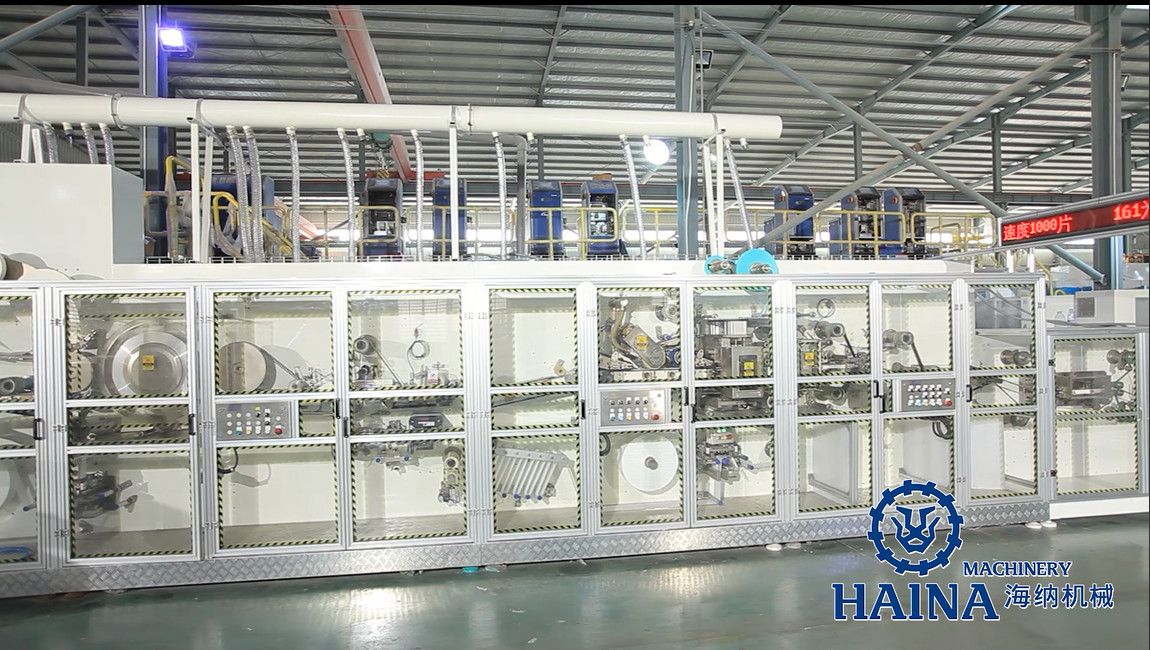

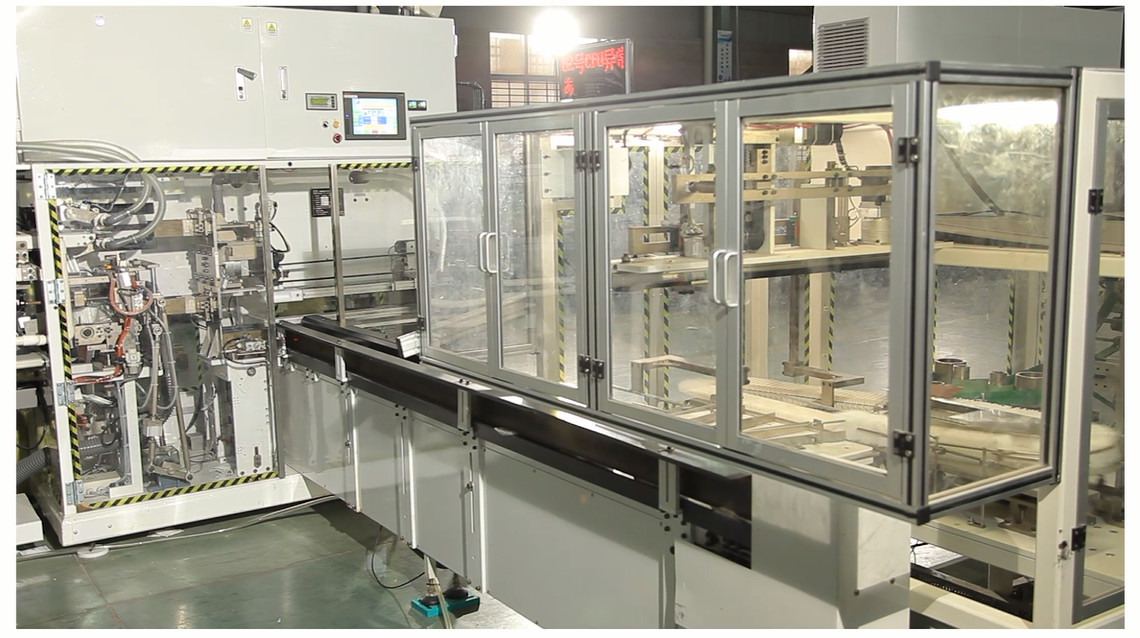

Workshop
QC
Each part, we have strict and standard test procedure, if not meet the test standard, unqualified, will be repaired. Alll qualified parts will be lasered Haina model on it.
