| Minimum Order Quantity : | 1SET | Price : | Negotiatable |
|---|---|---|---|
| Packaging Details : | Seaworthy Packing | Delivery Time : | 5 Months After Receiving Deposit and Confirm Product Drawing |
| Payment Terms : | T/T | Supply Ability : | 70 Machines Per Year |
| Place of Origin: | JINJIANG, CHINA | Brand Name: | HAINA |
|---|---|---|---|
| Certification: | ISO9001:2015 | Model Number: | HNJX-LK500 |
|
Detail Information |
|||
| Design Speed: | 800pcs/min | Stable Working Speed: | 700pcs/min |
|---|---|---|---|
| Diaper Size: | M/L/XL | Diaper Type: | Pant Type |
| Servo Mode: | Full Servo | Voltage: | 380V, 50HZ |
| Production Capacity: | ≥85% | Warranty: | 1 Year |
| Highlight: | 120T Baby Diaper Production Line,700PPM Baby Diaper Machinery,400KW Diaper Production Line |
||
Product Description

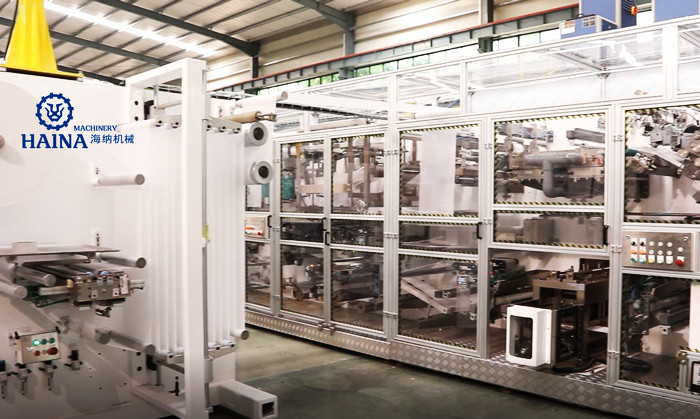

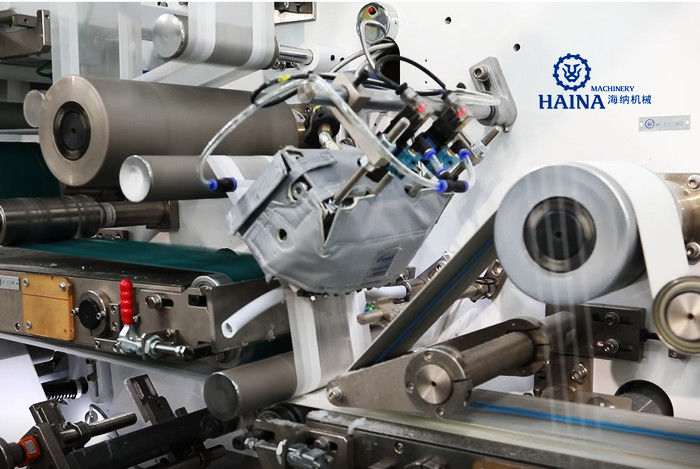

Customized High Speed 700ppm Pant Type Baby Diaper Production Line With Stacker
| MAIN CONFIGURATION | |
| Modular Design | Allow customized configuration for the specific product required. Retrofit and upgrade kits can be easily installed and tailored in order to meet customer’s requirements. |
| Compact Design | Smooth on-site start-up, easy operation and easy maintenance. |
| Full Servo | Each module is independently driven thus easing operators’ daily operations on the machine and ensuring adaptation to the raw materials used and environmental conditions. |
| Program System | Servo driven, intelligent HMI touch screen man-machine interface |
| Tension System | Tension control with buffer system, automatic web guiding system, to ensure materials stable working ar ZERO speed splice. |
| Driven System | Servo drive, digital size change, ensure run synchronously at full process. |
| Safety System | Safety guard for operating side, emergency stop switch, security identifier, safety pull wire at driven side. |
| Packaging System | Auto stacker to be defined by customer need (dual push dual exit). |
| Web Guiding System | Germany BST / USA FIFE |
| Product Detection System | Including the weight, metal, appearance, position |
| Customization | Available |
| FULL SERVO PULL UP BABY DIAPER PANT PRODUCTION LINE | |
| MAIN PARAMETERS | |
| Working Speed (production speed) | 700 pcs/minute |
| Power Supply | 380V 50/60HZ, Tri-phase |
| Installation Power Capacity | 400KW |
| Air Consumption | 1800~4800l/minute |
| Air Pressure | 0.6-0.8Mpa |
| Qualified Rate | ≥97% (excluding scrap caused by hot melt, materials splicing or joint) |
| Efficiency | ≥85% |
| Machine Weight | 110 Tons approximately |
| Machine Size (meters) | L: 40 W: 8 H: 4.5 |
| CONFIGURATION & OPTIONS | |
| Product Structure | Top sheet hydrophilic nonwoven, leak cuff hydrophobic nonwoven, ADL, Fluff core pad, SAP, Upper & lower tissue paper, Back sheet, Waist nonwoven, Leg & leak cuff elastics |
| Product Size | M, L, XL |
| Product Specification | Width: 380-420mm Length: 400-560mm |
Optional Process Configurations
· Aloe/perfume application unit
· Gravimetric SAP dosing unit
· Auto stacker or auto bagger
· Camera quality detection unit
