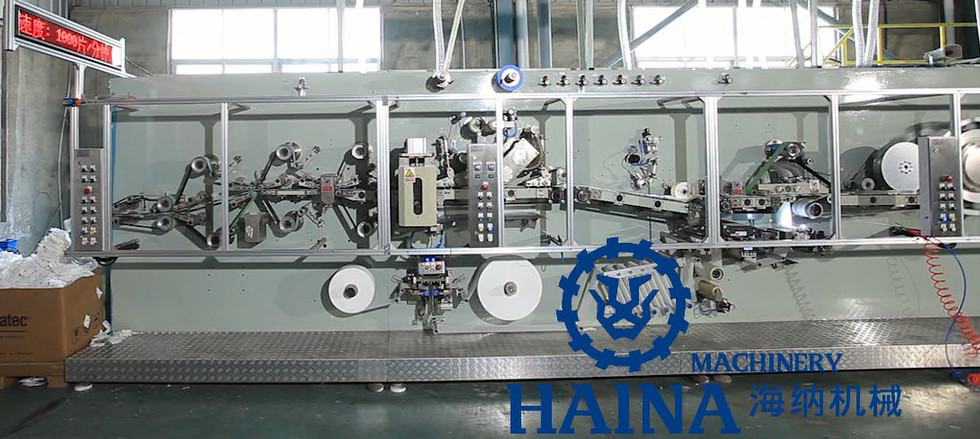

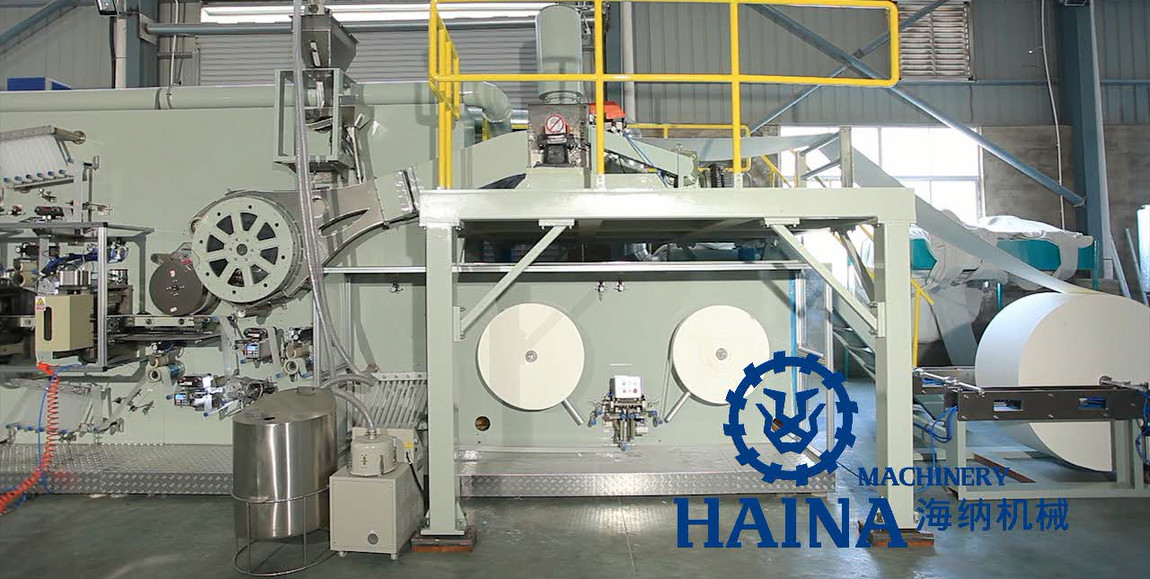

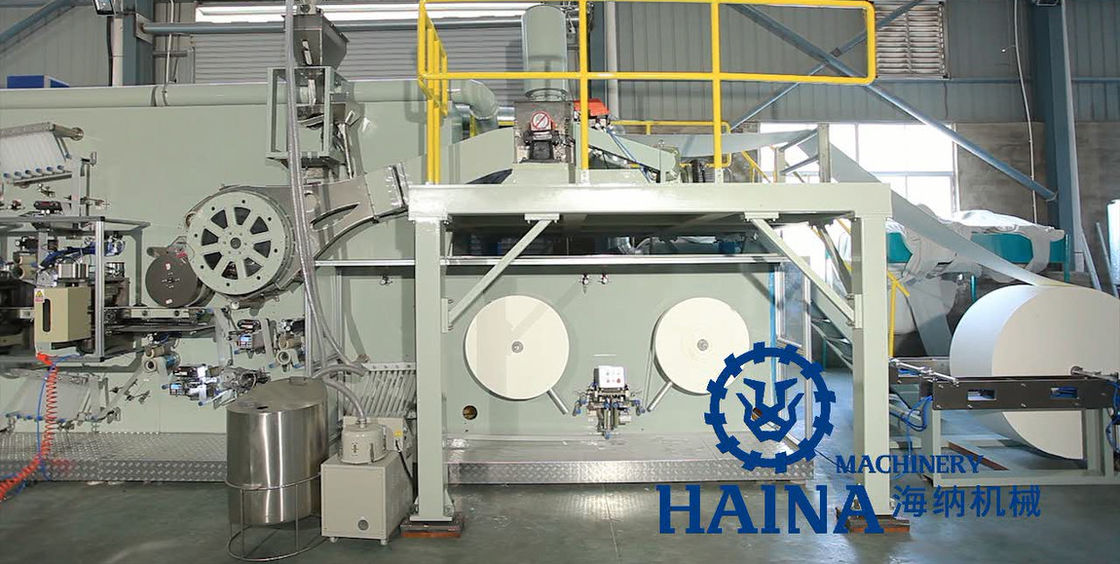

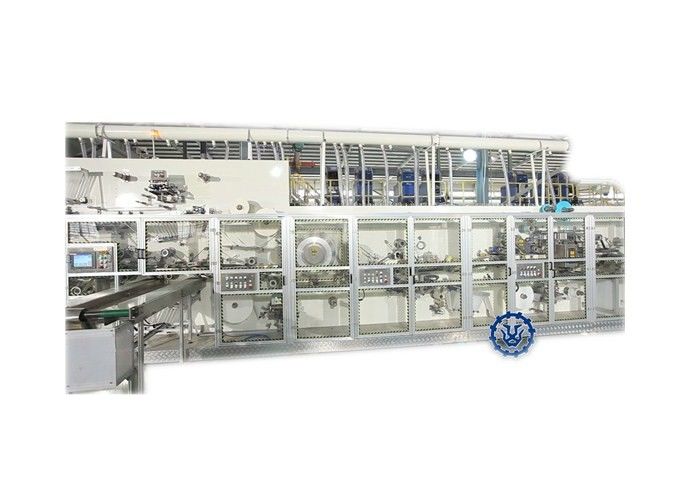

Wood Pulp Molding 1000PPM 155mm Panty Liner Machine
Contact Person : Amy Woo
Phone Number : 0086-13599937366
WhatsApp : +8613599937366
| Minimum Order Quantity : | 1 SET | Price : | Negotiable |
|---|---|---|---|
| Packaging Details : | Film wrapped | Delivery Time : | 150 Days |
| Payment Terms : | L/C, T/T | Supply Ability : | 72 SETS/YEAR |
| Place of Origin: | CHINA | Brand Name: | HAINA |
|---|---|---|---|
| Certification: | CE | Model Number: | HNJX-HD1200 |
|
Detail Information |
|||
| Processing Type: | Pulp Molding Machine | Final Products: | Panty Liner |
|---|---|---|---|
| Product Size: | 155mm / Customized | Power Supply: | 3 Phase 380V, 50HZ |
| Warranty: | One Year | Machine Size: | 30M(L)*6M(W)*4M(H) |
| PLC: | Mitsubishi / Siemens Optional | Program System: | Servo Control |
| Highlight: | 380V 50HZ Panty Liner Machine,0.8Mpa Panty Liner Machine,PLC Mitsubishi sanitary pad making machine |
||
Product Description
Feminine High Technology Full / Semi Automatic Panty Liner Machine / Mini Sanitary Pad Machine
Main technical parameters:
| Machine | Feminine High Speed 1200 pcs / min Panty Liner Machine Full Servo |
| Model | HNJX-HD1200 |
| Products | Panty Liner |
| Products Structure and dimension | see product drawing |
|
Product Structure (Normal Type) |
Hydrophobic Nonwoven, Topsheet Nonwoven, ADL(short cut), Fluff+SAP mix ,Wrap core nonwoven, PE film |
|
Product Size |
155mm / Customized |
| Design speed | 1200 pcs/min |
| Production speed | 1000 pcs/min |
| Defective rate | ≤3% |
| Efficiency | ≥85% |
| Power Supply | 3 Phase 380VAC, 50HZ (base on customer local power) |
| Total Weight | Around 70T |
| Power | ~400KW |
| Required Air Compressor | 2m³/min, 0.6-0.8Mpa |
| Dimension | L~45m,W~10m,H~4m |
| Machine direction | From right to left (According to the customer requirements) |
| Color | Car white (Customized) |
Servo driven, intelligent HMI touch screen man-machine interface
Tension control with buffer system, automatic web guiding system, to ensure materials stable working at zero speed splice.
Servo drive, digital size change, ensure run synchronously at full process.
Safety guard for operating side, emergency stop switch, security identifier, safety pull wire at driven side.
Auto stacker and Packaging machine to be defined by customer need.
BST ,Germany/FIFE, USA
Panty Liner Schematic View:
Introduction
Jinjiang Haina Machinery Co., Ltd is a very professional equipment manufacturer in China. Specializing in baby-diapers, adult-diapers, sanitary napkins machinery. With the spirit of keeping innovating and improving, Haina has made more achievements and earned very good reputation in this field during these years. Haina was listed on Hongkong exchange stock market successfully in 2020.(Stock code HK1645).
About Haina Machinery:
Global Market
Haina is listed on top three in domestic market in diaper machinery industry. With our innovative and striving spirit, global market is expanded. Haina has oversea customers from Philippines, Malaysia, Vietman, Indonesia, Turkey, Iran, Cambodia, Thailands, Singapore, Pakistan, Bangladesh, Uzbekistan, Congo, Kenya, Nigeria, Yemen, Sultan, Brazil, etc..
Workshop
We have two big warehouses for machine parts. The workshop has the capacity of the production of 20 machines at the same time.
Packing Way
