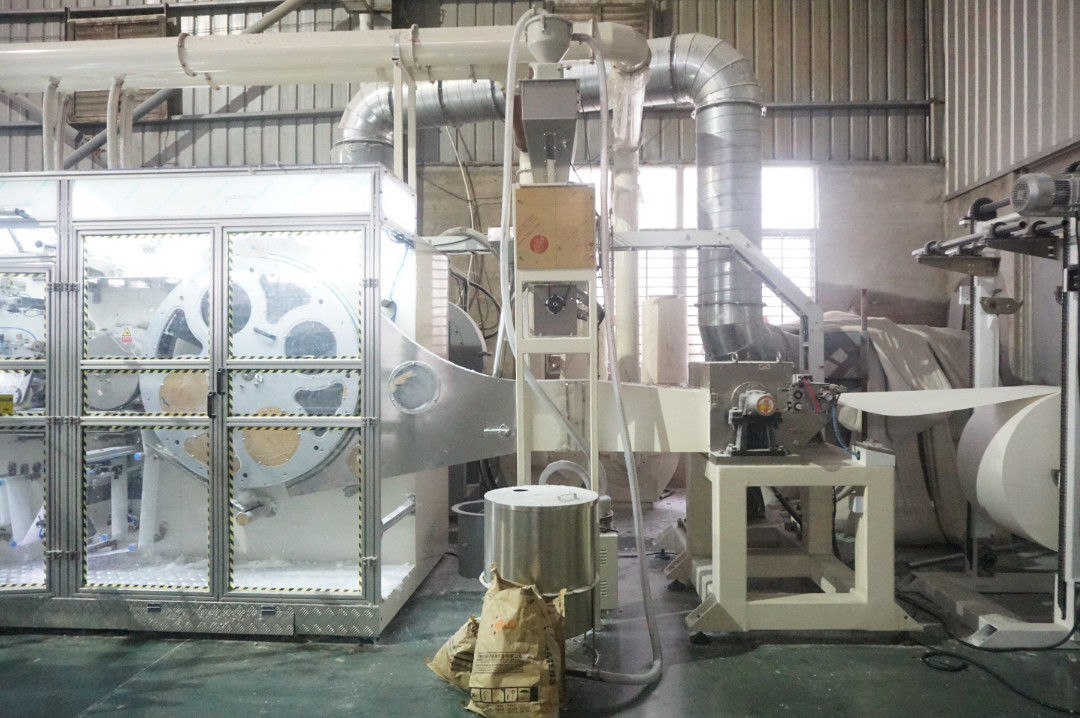

HAINA 220KW 85% Efficiency Sanitary Napkin Production Machine

Minimum Order Quantity :	1 SET	Price :	USD, Negotiable, Per set
Packaging Details :	International standard, Wrapped film packing, seaworthy	Delivery Time :	5-6 months
Payment Terms :	L/C, T/T	Supply Ability :	60 SETS PER YEAR

Place of Origin:	CHINA	Brand Name:	HAINA MACHINERY
Certification:	OSE-13-1130/01	Model Number:	HNJX-WSJ1000

Detail Information
Model:	WSJ1000	Production Size:	280mm & 320mm(can Be Customized)
Product Structure:	Fluff Type And Ultra-thin Type	Machine System:	Mitsubishi Or Siemens
Driven System:	Servo Drive, Digital Size Change	Auto Packing System:	Auto Stacker And Packing Machine To Be Defined By Customer Need
Web Guider System:	BST Germany Or FIFE USA	Hot Melt System:	Nordson USA Or Chinese Brand
Highlight:	85% sanitary napkin production machine , 220KW Sanitary Napkin Production Machine , HAINA Machinery

Product Description

FULL SERVO SANITARY NAPKIN PRODUCTION LINE

Main technical parameters:

Products	Full servo sanitary napkin production line
Product structure (Fluff type)	Hydrophilic Topsheet (or perforated film), ADL, Tissue, Pulp, SAP, PE film, Back release paper, Wings release paper, Pouch film, Easy tape.
Product structure (Ultra-thin type)	Hydrophilic Topsheet (or perforated film), ADL, Air-laid paper, Sap absorbent paper, PE film, Back release paper, Wings release paper, Pouch film, Easy tape.
Design speed	1000pcs per minute
Stable working speed	800pcs per minute
Machine size	*30m6m4m(FYI)*
Rejection rate	≤3.0%
Efficiency	≥85%
Machine power capacity	220KW (Approximately)
Air pressure	0.6-0.8Mpa

Main function and features:

1. Mechnical system:

Fluff vacuum adopt the side sucking mode, extending the vacuum area, to make fluff high density and soften
SAP feeding adopt roll type, quantitative mix and spread within cotton warehouse, after mix with cotton core, wrap molding
Dual pneumatic shaft to make sure auto splice with zero speed down.
With auto web guider to adjust material position.
Reasonable space design easy for the maintenance
Safety doors equipped
Frontal & ear side E-stop & safety line

2. Electrical system:

Full line are full servo control, setup by Interface.
SAP continuous quantitative evenly spread at reasonable position
Lower position alarm function
SAP sensor alarm & auto ground feeding to hopper
Raw materials inspecting, broken auto alarm & stop line
Color jointer detecting, auto rejecting
With auto counting system, sensor to control product quantity and easy to distinguish the quantity was set up
Raw splice at stable running & unwinding, manual or auto alternative functions
Production speed(pcsmin), shift output, rejecting quantity, total capacity, are interface display

Other facility:
