Schneider TeSys GV Thermal magnetic Circuit Breakers Diaper Machine Spare Parts

Product Description

Circuit breakers Diaper Machine Spare Parts Schneider TeSys GV Series

Circuit breakers for motor protection and control
TeSys GV motor circuit breakers provide compact, reliable and efficient solutions
for:

• Isolation,
• Protection against short circuits and overloads,
• On-Off manual control of motors from 0.06 to 250 kW.

They are conforming to, depending of the versions, IEC/EN 60947-1, IEC/EN
60947-2, IEC/EN 60947-4-1 and UL 60497-4-1, CSA 22.2 n° 60497-4-1.

TeSys GV protection technologies
TeSys GV are carried with 3 variants:

• Magnetic detection: GV2LE, GV2L, GV3L, GV4L, GV4LE for protection against short-circuit.
• Thermal-magnetic: GV2ME , GV2P, GV3P, GV4P, GV4PE, GV5, GV6 for protection against short-circuits, overload, phase loss and phase unbalance.
• Advanced: GV4PEM combines GV4P protections and motor jam, long start,ground-fault protections.

With a magnetic circuit breaker, a thermal relay is frequently associated in order to
have a short circuit protection and an overload protection.

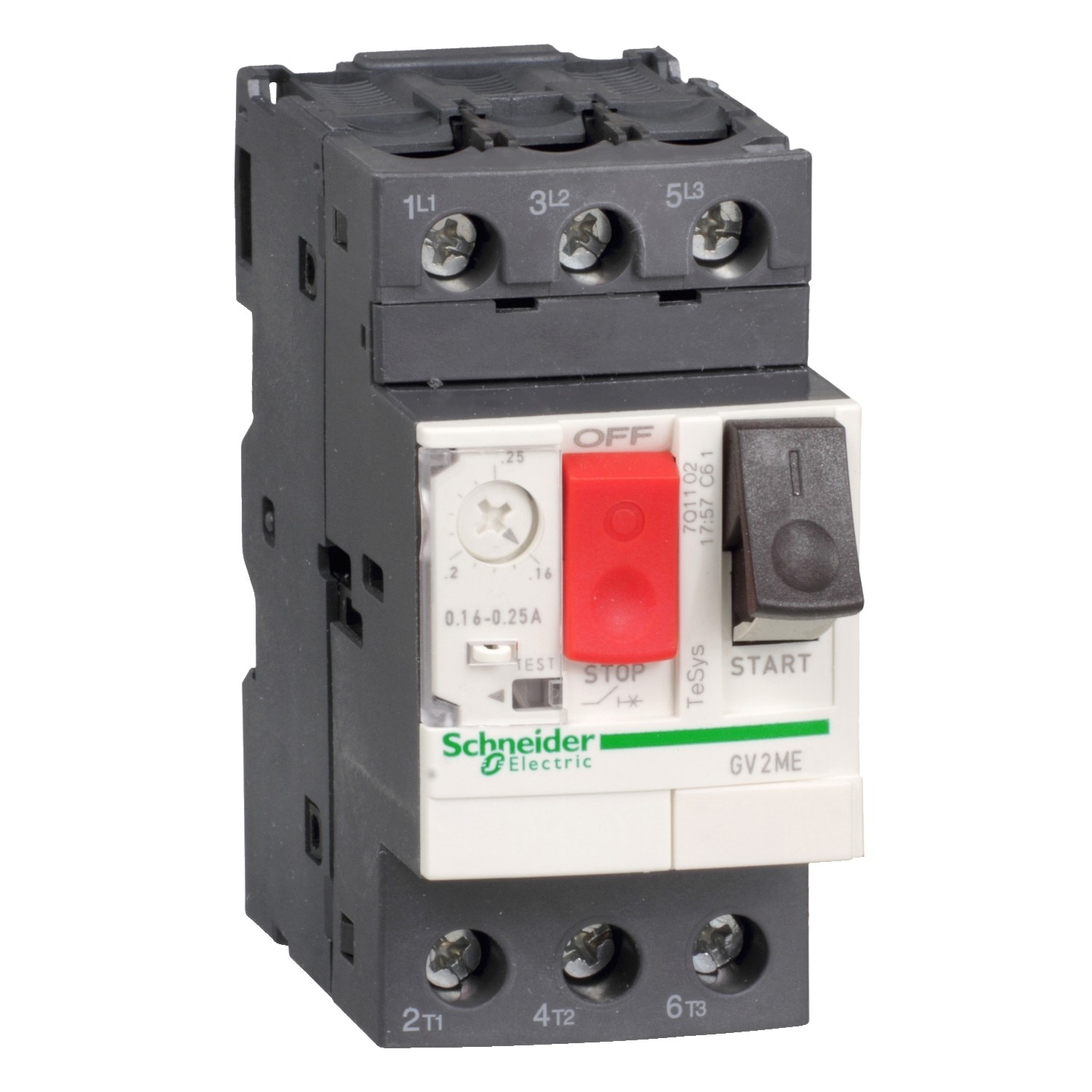

TeSys GV2
Circuit-breakers, coordinated with TeSys D contactors, to protect motors up to 32 A (15 kW / 400 V)

TeSys GV3
Circuit-breakers, coordinated with TeSys D contactors, to protect motors up to 80 A (45 kW / 400 V)

TeSys GV4
Circuit-breakers, coordinated with TeSys D contactors, to protect motors up to 115 A (55 kW / 400 V)

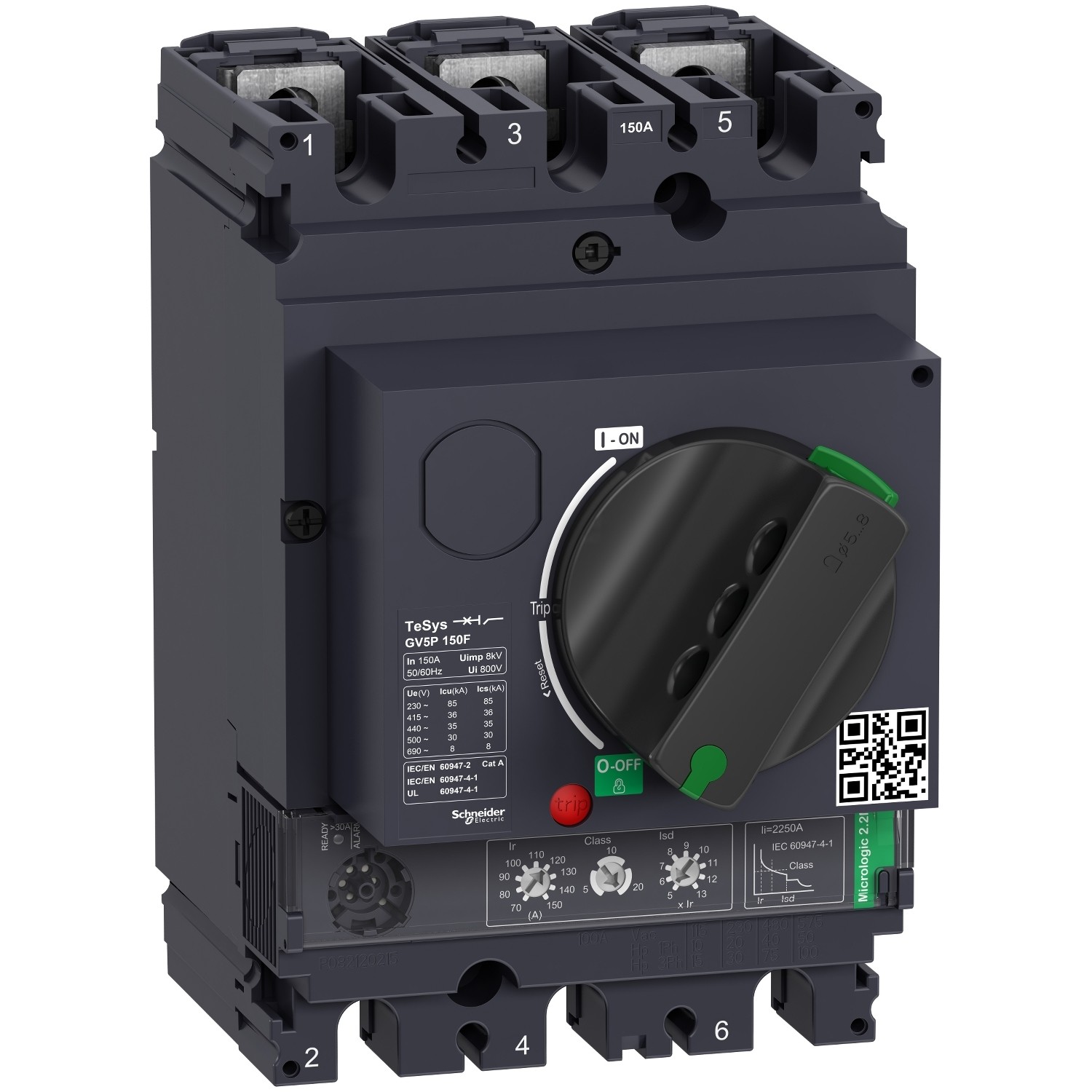

TeSys GV5, GV6
Circuit-breakers, coordinated with TeSys D and TeSys F contactors, to protect motors up to 500 A (250 kW / 400 V)
