HMI Touch Screen 0.8Mpa 85% Efficiency Underpad Machine

Minimum Order Quantity :	1 SET	Price :	USD, Negotiable, Per set
Packaging Details :	International standard, Wrapped film packing, seaworthy	Delivery Time :	5-6 months
Payment Terms :	L/C, T/T	Supply Ability :	60 SETS PER YEAR

Place of Origin:	CHINA	Brand Name:	HAINA MACHINERY
Model Number:	HNJX-CD300

Detail Information
Model:	HNJX-CD300	Production Size:	S, M, L, XL
Product Structure:	Hydrophilic Topsheet (or Perforated Film), Upper Tissue, Pulp, SAP, Bottom Tissue, PE Film, Release Paper	Design Speed:	300meter Per Minute
Stable Working Speed:	250meter Per Minute	Machine Size:	30m8m3.5m(FYI)
Rejection Rate:	≤3.0%	Efficiency:	≥85%
Highlight:	85% Efficiency Underpad Machine , HMI Touch Screen Underpad Machine , 0.8Mpa Underpad Machine

Product Description

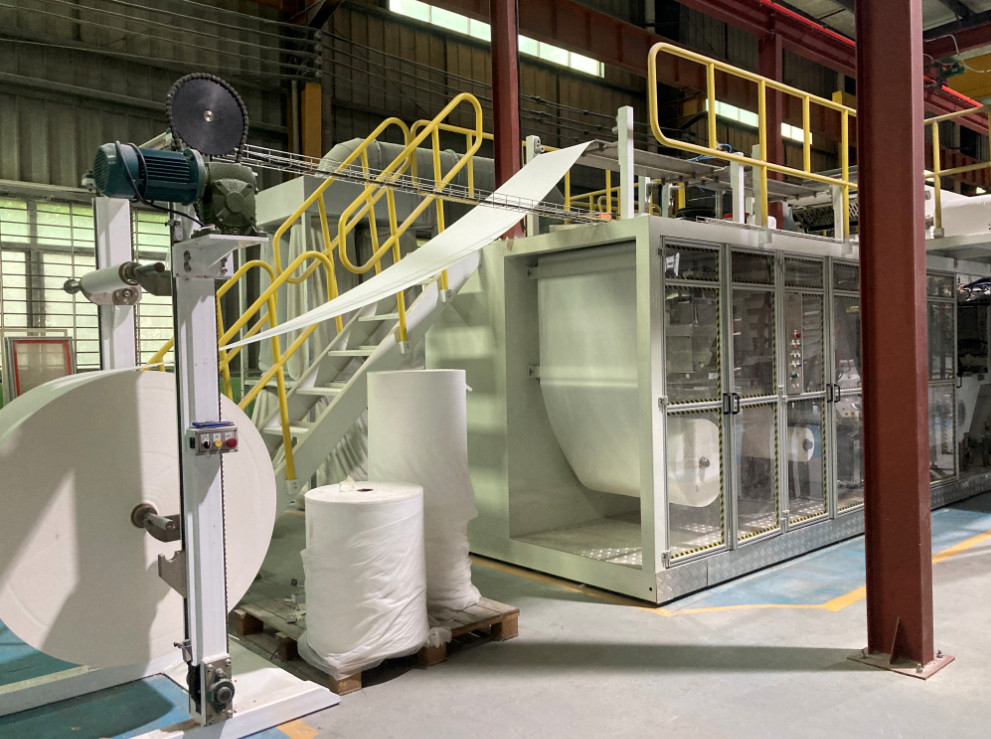

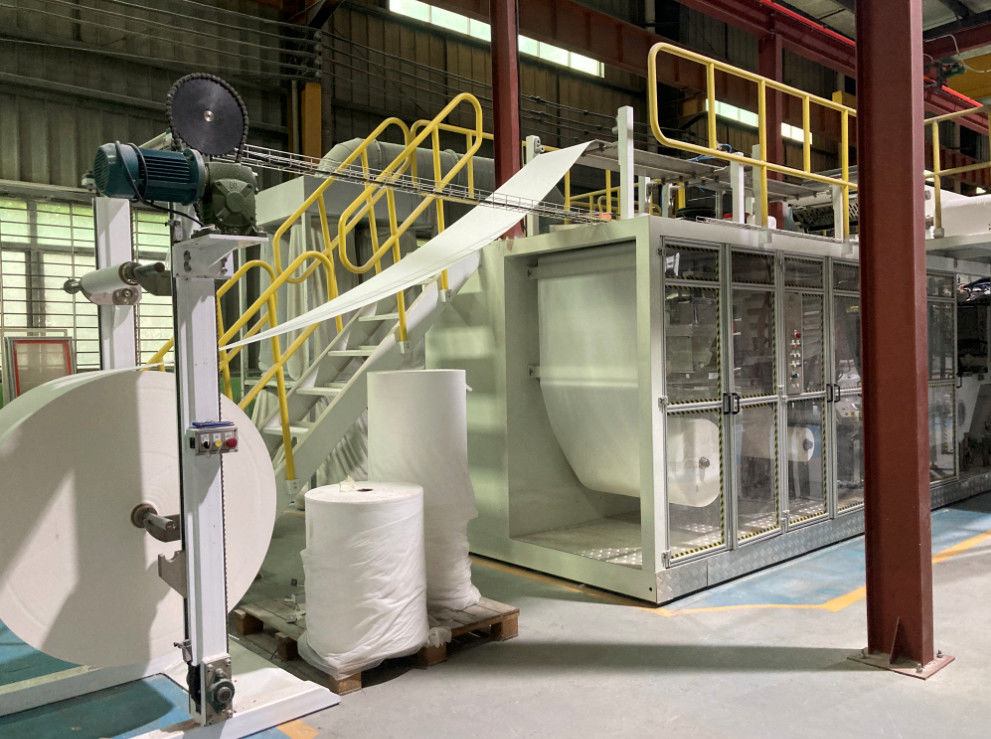

FULL SERVO ABSORBENT UNDERPAD PRODUCTION LINE

Main parameters:

Products	FULL SERVO ABSORBENT UNDERPAD PRODUCTION LINE
Machine system	Mitsubishi or Siemens
Power source	380V, 50/60HZ
Machine power capacity	265KW (Approximately)
Air pressure	0.6-0.8Mpa
Machine weight	60 tons (Approximately)
Program system	Servo driven, intelligent HMI TOUCH screen man-machine interface
Tension system	Tension control with buffer system, automatic web guiding system, to ensure materials stable working at zero speed splice
Driven system	Servo drive, digital size change
Safety system	Safety guard for operating side, emergency stop switch, security identifier, safety pull wire at driven side

Main function and features:

1.Mechnical system:

Fluff vacuum adopt the side sucking mode, extending the vacuum area, to make fluff high density and soften
SAP feeding adopt roll type, quantitative mix and spread within cotton warehouse, after mix with cotton core, wrap molding
Dual pneumatic shaft to make sure auto splice with zero speed down.
With auto web guider to adjust material position.
Reasonable space design easy for the maintenance
Safety doors equipped
Frontal & ear side E-stop & safety line

2.Electrical system:

Full line are full servo control, setup by Interface.
SAP continuous quantitative evenly spread at reasonable position
Lower position alarm function
SAP sensor alarm & auto ground feeding to hopper
Raw materials inspecting, broken auto alarm & stop line
Color jointer detecting, auto rejecting
With auto counting system, sensor to control product quantity and easy to distinguish the quantity was set up
Raw splice at stable running & unwinding, manual or auto alternative functions
Production speed(pcsmin), shift output, rejecting quantity, total capacity, are interface display.

Why choose us:

1. Complete range, Haina Machinery manufactures many kinds of disposable hygiene product machine, including Sanitary napkin machine, pull-ups baby diaper machine(Classic & New type), full surround baby diaper machine, T-shape baby diaper machine, Adult & Menstrual pant machine, Adult diaper machine, Pantyliner machine and so on.

2. Quality guarantee, CNC finishing and work with famous brands

3. Customized, we can customized the machine as customer requirement.

4. Perfect service, we promise to respond within 24h.

5. Innovation, we continue innovating all the time.
