500PPM Pulp SAP Baby Diaper Machinery With Mitsubishi System

Minimum Order Quantity : 1 SET Price : Negotiable
Packaging Details : Film wrapped Delivery Time : 150 Days
Payment Terms : T/T Supply Ability : 72 SETS / YEAR
Place of Origin: CHINA Brand Name: HAINA
Certification: CE Model Number: HNJX-UNK600

Detail Information

System: Mitsubishi Design Speed: 600 PPM
Stable Production Speed: 550 PPM Air Pressure: 0.6 - 0.8 Mpa
Glue Machine: Nordson Efficiency: ≥85%
Condition: New Weight: 90ton
Highlight:

Pulp SAP Baby Diaper Machinery

,

Baby Diaper Machinery With Mitsubishi System

,

500PPM Diaper Manufacturing Machine

Product Description

Mitsubishi System 500PPM Pulp SAP Baby Diaper Machinery





Machine Main Parameters:



Machine Mitsubishi System 500PPM Pulp SAP Baby Diaper Machinery
Model HNJX-UNK600
Products Baby Diaper
Products Structure Upper & Lower tissue paper, Cotton core ( mix with SAP), ADL, PE film, frontal tape, topsheet hydrophilic nonwoven, leg cuff hydrophobic nonwoven, S cut side tape, waistband online.
Product Size NB, S, M, L, XL, XXL
Glue Machine Nordson / Chinese Brands Optional
Design speed 600 pcs/min
Production speed 500 pcs / min
Defective rate ≤3%
Efficiency ≥85%
Power Supply 3 Phase 380VAC, 50HZ (base on customer local power)
Total Weight 100 T customized
Power ~300KW
Required Air Compressor 2m³/min, 0.6-0.8Mpa
Dimension L~42m,W~8.0,H~4m
Machine direction From right to left or left to right (According to the customer requirements)
Color Customized





Systems:



1. Program system: Servo driven, intelligent HMI TOUCH screen man-machine interface

2. Tension system: Tension control with buffer system, automatic web guiding system, to ensure materials stable working at zero speed splice

3. Driven system: Servo drive, digital size change

4. Safety system: Safety guard for operating side, emergency stop switch, security identifier, safety pull wire at driven side

5. Auto packing system: Auto stacker and packing machine to be defined by customer need

6. Web guider system: BST Germany or FIFE USA

7. Visual system: Running data and alarm content can be online display, making operation more convenient





About Haina Machinery:



Our Company was founded in 2011 ,located in Jinjiang city, Fujian Province. In 2020, HAINA was listed in Hongkong main board stock market. HAINA have 385 professional staffs,we have Jinjiang and Hangzhou production base, total factory construction area 36,000㎡, with annual capacity 100 machines. As one professional disposable hygiene products machine producer, HAIHA grew to one of the biggest players in hygiene industry in merely 10 years. Today HAINA ranks NO. 3 in China, with a market share of approximately 3.8% .



Haina Machinery's development is surprised, it developed very fast in 10 years, and earn customers' great recognition. Especially Haina was successful to be listed on HongKong Stock exchange market and in 2020, we received the orders of more than 90 machines.

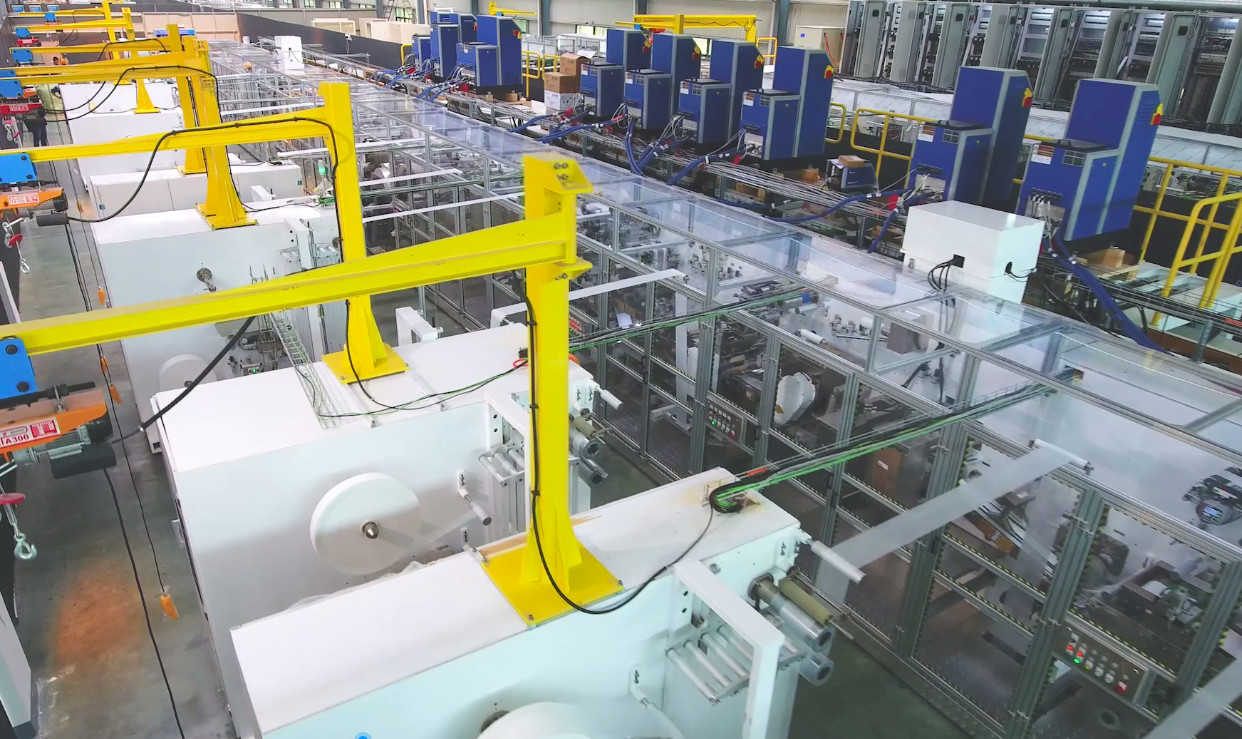

500PPM Pulp SAP Baby Diaper Machinery With Mitsubishi System 0





Haina After Sales Service:



A full range of after-sales services is always provided by Haina engineers:



1. Provide training service for customer technicians. Within one month from the date of delivery of the machine, you can send technicians to our factory to learn how to operate the machine. We can provide food and lodging.



2. We will send our technicians to customer factory for assistant and install and debug the machines.



3. If you need a Chinese technician to work in your factory for a long time, we can help you, because we have a long-term cooperative relationship with them.



4. One year warranty.



5. Life long after-sales and components sourcing for customer.



Proudly, Haina engineers also assist customers solve some issues through remote instructions. Remote assistance dealing with software problem to give you the efficient after-sale service with no production delayed. Customers appreciated our team very much.



Quality control:



1. Balance test.

2. Dimension measurement

3. Hardness measurement

4. Precision measurement

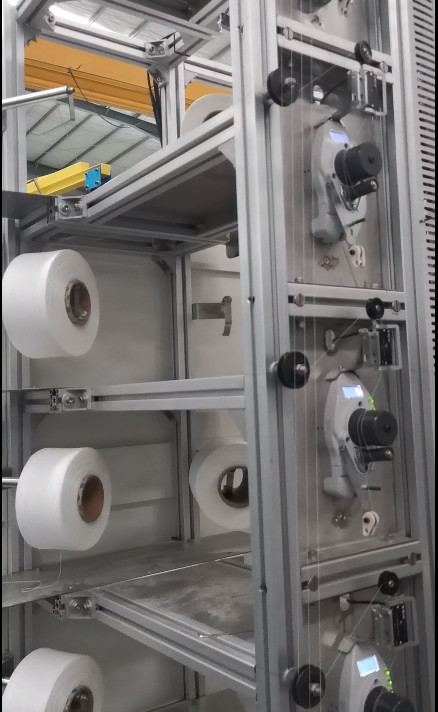

500PPM Pulp SAP Baby Diaper Machinery With Mitsubishi System 1
