HMI Touch Screen 220KW 800pcs/Min Sanitary Napkin Machine

Minimum Order Quantity :	1 SET	Price :	USD, Negotiable, Per set
Packaging Details :	International standard, Wrapped film packing, seaworthy	Delivery Time :	5-6 months
Payment Terms :	L/C, T/T	Supply Ability :	60 SETS PER YEAR

Place of Origin:	CHINA	Brand Name:	HAINA MACHINERY
Certification:	OSE-13-1130/01	Model Number:	HNJX-WSJ1000

Detail Information
Model:	WSJ1000	Production Size:	280mm & 320mm(can Be Customized)
Product Structure:	Fluff Type And Ultra-thin Type	Machine System:	Machine System
Machine Size:	30m6m4m(FYI)	Rejection Rate:	≤3.0%
Efficiency:	≥85%	Power Source:	380V, 50/60HZ
Highlight:	800pcs/Min sanitary napkin production line , HMI Touch Screen Sanitary Napkin Machine , 220KW sanitary napkins production plant

Product Description

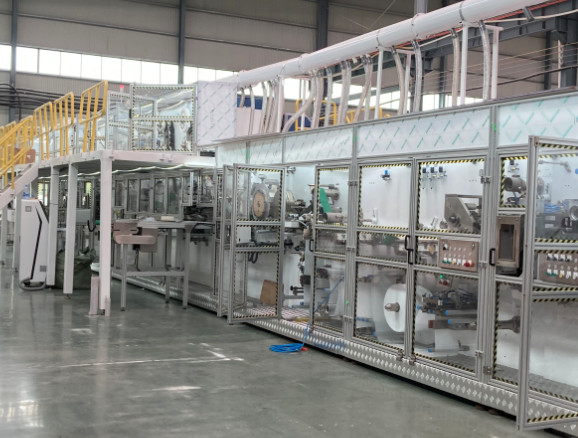

FULL SERVO SANITARY NAPKIN PRODUCTION LINE

Main technical parameters:

Products	Full servo sanitary napkin production line
Production size	280mm & 320mm(can be customized)
Product structure (Fluff type)	Hydrophilic Topsheet (or perforated film), ADL, Tissue, Pulp, SAP, PE film, Back release paper, Wings release paper, Pouch film, Easy tape.
Product structure (Ultra-thin type)	Hydrophilic Topsheet (or perforated film), ADL, Air-laid paper, Sap absorbent paper, PE film, Back release paper, Wings release paper, Pouch film, Easy tape.
Program system	Servo driven, intelligent HMI TOUCH screen man-machine interface
Tension system	Tension control with buffer system, automatic web guiding system, to ensure materials stable working at zero speed splice
Driven system	Servo drive, digital size change
Safety system	Safety guard for operating side, emergency stop switch, security identifier, safety pull wire at driven side
Auto packing system	Auto stacker and packing machine to be defined by customer need
Web guider system	BST Germany or FIFE USA

Main function and features:

1. Mechnical system:

Fluff vacuum adopt the side sucking mode, extending the vacuum area, to make fluff high density and soften
SAP feeding adopt roll type, quantitative mix and spread within cotton warehouse, after mix with cotton core, wrap molding
Dual pneumatic shaft to make sure auto splice with zero speed down.
With auto web guider to adjust material position.
Reasonable space design easy for the maintenance
Safety doors equipped
Frontal & ear side E-stop & safety line

2. Electrical system:

Full line are full servo control, setup by Interface.
SAP continuous quantitative evenly spread at reasonable position
Lower position alarm function
SAP sensor alarm & auto ground feeding to hopper
Raw materials inspecting, broken auto alarm & stop line
Color jointer detecting, auto rejecting
With auto counting system, sensor to control product quantity and easy to distinguish the quantity was set up
Raw splice at stable running & unwinding, manual or auto alternative functions
Production speed(pcsmin), shift output, rejecting quantity, total capacity, are interface display

Sales network:

We have sold machines to many countries from all over the world. Including Russia, Korea, Turkey, Uzbekistan, Philippine, Indonesia, Vietnam, Malaysia, Thailand, Cambodia, India, Pakistan, Bangladesh, Yemen, Bulgaria, Iran, Sudan, Kenya, Angola, Nigeria, Congo, South Africa, Brazil.
