440V 680*450mm Disposable SAP Diaper Manufacturing Machine
440V 680*450mm Disposable SAP Diaper Manufacturing Machine
Contact Now

440V 680*450mm Disposable SAP Diaper Manufacturing Machine

Minimum Order Quantity : 1 Set Price : Negotiable
Packaging Details : Packed by international standard, anti-rusty treated and wrapped film packing. Delivery Time : 180 work days
Payment Terms : T/T Supply Ability : 6 Sets per 1 Month
Place of Origin: CHINA Brand Name: HAINA
Model Number: HNJX-CK300

Detail Information
Design Speed: 300PPM Stable Speed: 250PPM
Product Size: XL/L/M/S Product Weight Tolerance: ±5%
Wastage: ≤4.0%(Excluding Glue, Splice, Raw Jointer Defectives） Efficiency: ≥85%
Installation: 335KW（glue Machine & Air Compressor Not Included） Power Supply: 380 /440V 、50/60Hz (3 Phases, 4 Lines, Ground-in)
Air Compressor: 0.6-0.8Mpa Machine Sizes: 38m×8m×4.5m（Including Mill, Pulp & Stacker）
Highlight:

680*450mm Diaper Manufacturing Machine

,

440V Diaper Manufacturing Machine

,

Disposable SAP diaper production Line

Product Description

Customized Full Servo Control Adult Diaper Making Machine





Main Parameters

  1. Strong firm structure, face board 30mm thickness after CNC treated, frame is 60mm steel square bar, bottom frame is 150mm×150mm bar, driven cabin is 1100mm width, easy for the maintenance, pedal equipped.
  2. Mill system:Saw-type high speed mill, treated, untreated & semi-treated pulp available.
  3. Fluff Forming system,Double drummer, continue type , anatomic core.Separated chambers forming: distribution layer(Non-SAP),Mix-layer(SAP mixed),bottom layer(non-SAP).
  4. SAP spray system:Flat belt pushing, mixing-up fluff.
  5. Bottom tissue applicator
  6. Upper tissue applicator
  7. ADL applicator
  8. Leak-cuff structure
  9. Philic nonwoven applicator
  10. Elastic waist applicator
  11. Back nonwoven applicator
  12. PE film applicator
  13. Frontal tape applicator
  14. Leg elastic spray
  15. Side tape applicator
  16. Side tape inner fold unit
  17. Arc shape cutter unit
  18. Wastage separated and collection unit
  19. Three rolls compressed, pneumatic given pressure.
  20. Product shape die cut
  21. Product cross fold
  22. Three-rolls compressed device.
  23. Product final cut
  24. Product tri-fold
  25. Rejecting outlet
  26. Array out with counting function(direction pending)

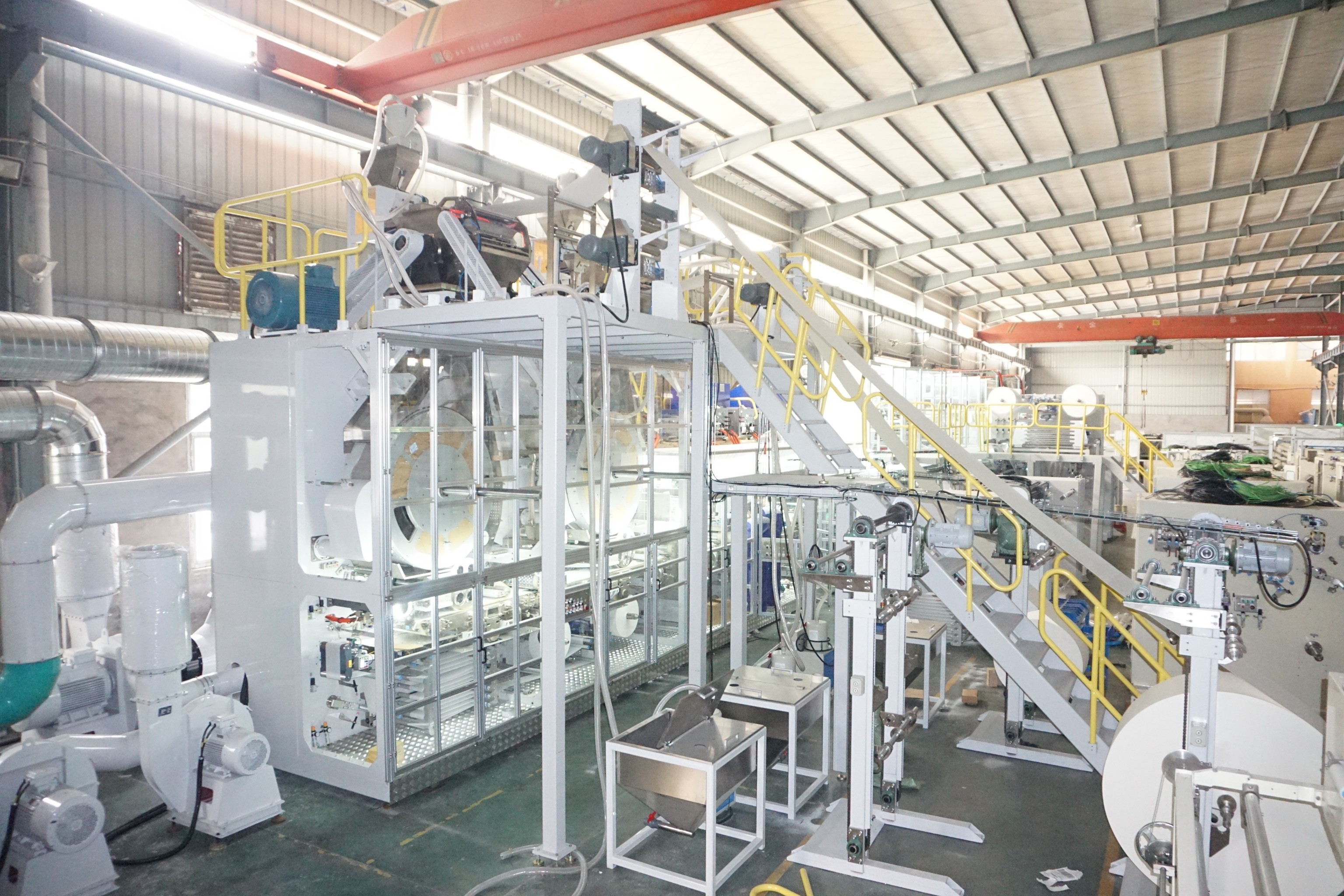

440V 680*450mm Disposable SAP Diaper Manufacturing Machine 0

440V 680*450mm Disposable SAP Diaper Manufacturing Machine 1



About HAINA

  1. 2011.01, Haina was founded.
  2. 2011.11, We started R&D for the class pull-up baby diaper line.
  3. 2012.06,We finished production of class pull-up baby diaper line.
  4. 2013.03,Finished production of our full surrounded baby diaper line.
  5. 2013.09,Recognized as National level high-new technology enterprise.
  6. 2013.11,We got CE certificate.
  7. 2014.12,R&D and finished production of new type pull-up line.
  8. 2015.02,U-type hourglass baby diaper productione line was delivered.
  9. 2015.12,Adult pants production line was delivered.
  10. 2016.07,Sold machines to Hengan Group-No.1 hygiene factory in China.
  11. 2017.04,HANGZHOU HAINA(second branch) set up.
  12. 2020.06,Haina is successful to list on HongKong Main Board Stock.
