PLC Touch Screen 335KW 300PPM Adult Diaper Making Machine
Contact Person : Amy Woo
Phone Number : 0086-13599937366
WhatsApp : +8613599937366
| Minimum Order Quantity : | 1 Set | Price : | Negotiable |
|---|---|---|---|
| Packaging Details : | Packed by international standard, anti-rusty treated and wrapped film packing. | Delivery Time : | 180 Work Days |
| Payment Terms : | T/T | Supply Ability : | 6 Sets per 1 Month |
| Place of Origin: | China | Brand Name: | HAINA |
|---|---|---|---|
| Model Number: | HNJX-CK300 |
|
Detail Information |
|||
| Design Speed: | 300ppm | Product Size: | XL/L/M/S |
|---|---|---|---|
| Installation: | 335KW（glue Machine & Air Compressor Not Included） | Air Compressor: | 0.6-0.8Mpa |
| Stable Speed: | 250ppm | Product Weight Tolerance: | ±5% |
| Efficiency: | ≥85% | Power Supply: | 380 /440V 、50/60Hz (3 Phases, 4 Lines, Ground-in) |
| Machine Sizes: | 38m×8m×4.5m（Including Mill, Pulp & Stacker） | ||
| Highlight: | 950*760mm Diaper Manufacturing Plant,0.6Mpa Diaper Manufacturing Plant,HMI interface Diaper Manufacturing Plant |
||
Product Description

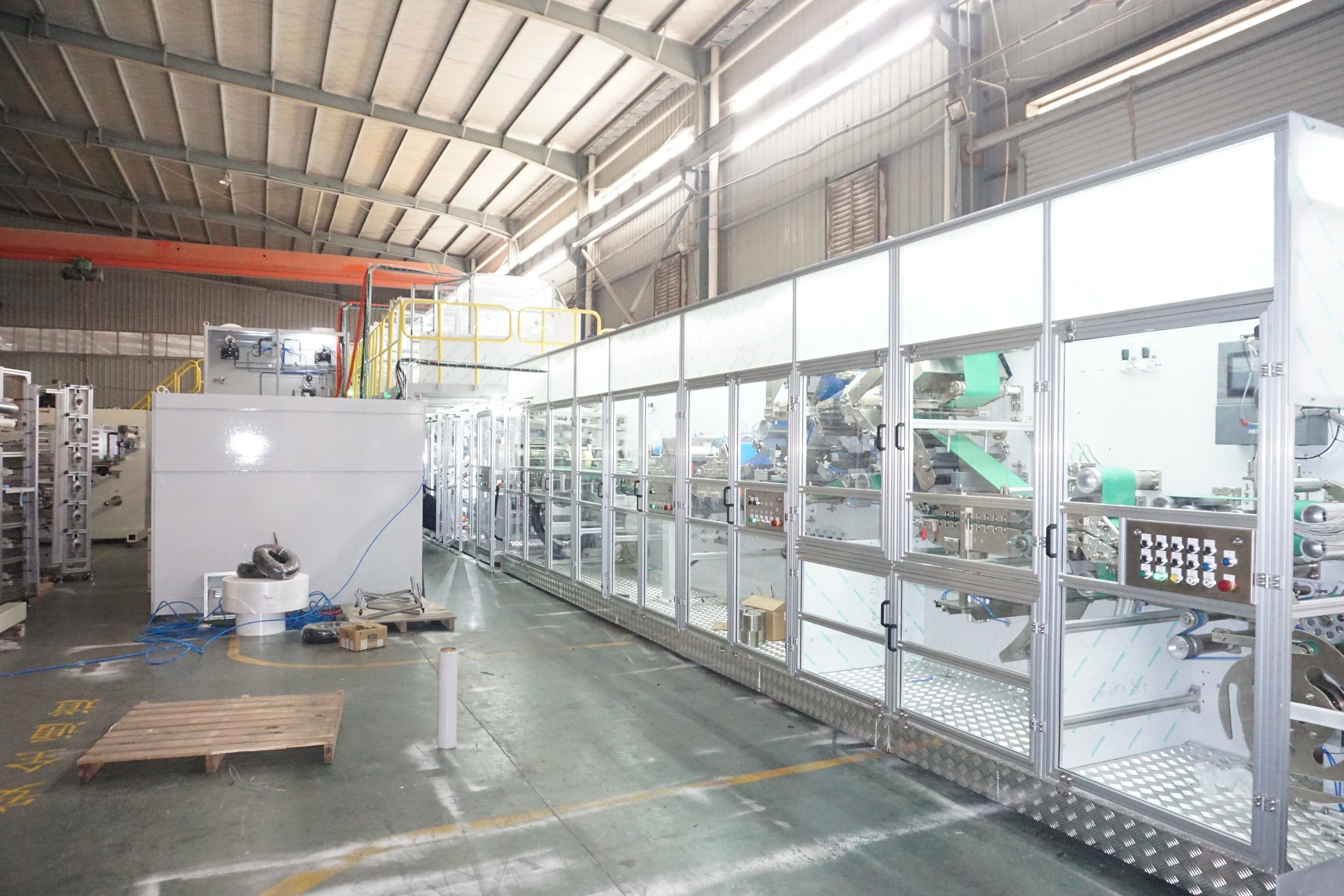

High Performance Full Servo Adult Diaper Making Machine
Features :
Configuration&Options
| Product structure | Leg cuff hydrophobic nonwoven.Top sheethydrophillc nonwoven.ADL,Cotton core(SAPmixed)Side tape,Waistband,Frontal tape,Back sheet |
| Product size | M:680*450(mm) L:800*650(mm) XL:950*760(mm) |
| Program system | Servo driven,intelligent HMI touch screen man-machine LCD interface. |
| Tension system | Tension control with buffer system,automatic web guiding system.to ensure materials stable working at ZERO speedsplice |
| Driven system | Servo drive.digital size chango.ensure run synchronously at full process. |
| Safety system | Safety guard for operating side,emergency stop switch,security identifier,safety pull wire at driven side. |
| Packaging system | Auto stacker to be defined by customor need (dual push dual exit),the stacking range:8-16pcs/pack adjustable. |
| Web guiding system | Gemany BST/USA FIFE |
| Customized function available | |
Raw material specifications
| Item Number | Raw material layer |
| 1 | Hydrophilic N.W.(for top sheet) |
| 2 | Hydrophobic N.W.(for standing cuff) |
| 3 | Acquisition&distribution layer N.W. |
| 4 | Fluff core pad |
| 5 | SAP(super absorbent polymer) |
| 6 | Upper tissue |
| 7 | Lower tissue |
| 8 | Back sheet PE |
| 9 | Fastening tab tapes |
| 10 | Frontal pad |
| 11 | Leg elastics |
| 12 | Leak elastics(for standing cuff) |
| 13 | Waist band |
| Options(for two fluff cores) | |
| 1 | Fluff core padII |
| 2 | SAP applicatorII(super absorbent polymer) |
| Options(for clothlikes back sheet) | |
| 1 | Back sheet(clothlikes) |
Haina Machinery
Since 2011, HAINA has boomed in just in 10 years, specially making astounding advances in the sales volume and continuous improvement in quality and stability.Besides this, We have won good reputation in local and overseas market, for our outstanding quality and continuous innovations. We are here to serve and continue to improve to give our customers the best.
