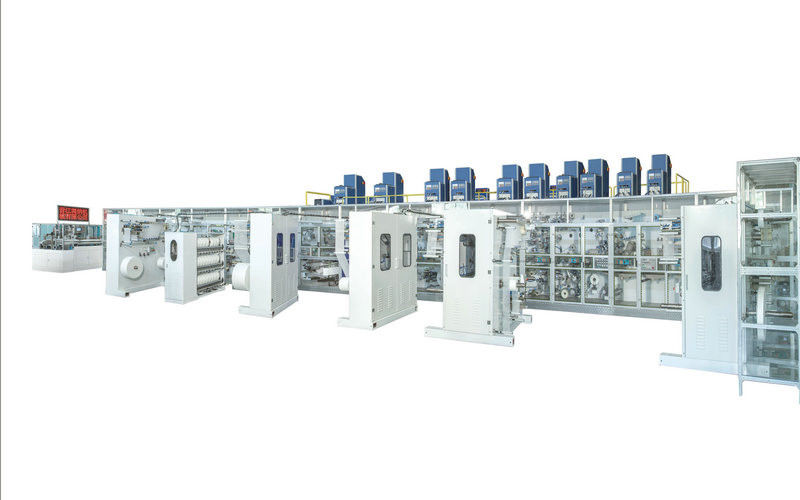

Modular Design 400kw S M L XL 550mm Baby Diaper Making Machine

Minimum Order Quantity : 1SET Price : Negotiatable
Packaging Details : Seaworthy Packing Delivery Time : 5 Months After Receiving Deposit and Confirm Product Drawing
Payment Terms : T/T Supply Ability : 70 Machines Per Year
Place of Origin: JINJIANG, CHINA Brand Name: HAINA
Certification: ISO9001:2015 Model Number: LK500

Detail Information

Condition: New Code NO.: HNJX-CK500
Place Of Origin: Jinjiang, China Certification: ISO/CE
Power: 380V,50HZ Capacity: 400kw
Design Speed: 600 Working Speed: 500
Weight: 100tons Warranty: 1 Year
Highlight:

550mm baby diaper making machine

,

400kw Baby Diaper Making Machine

,

550mm Nappy Making Machine

Product Description

Low Wastage High speed baby diaper prodcution line for baby pull ups baby diaper



Product Application

The speed synchronization and phase synchronization of Diaper pants baby making machine are all controlled by servo motor + PLC. The main machine is supplied by fiber collector, the thickness can be adjusted at any time, and the waste can be recycled.Lint pulp and absorbent paper package, mesh press and finalize the design, the use of cotton core does not break, do not shift.The three-dimensional protective material is cut in the machine and formed by hot pressing, which can be combined with elastic to form the three-dimensional protective material and prevent side leakage. The whole machine is driven by servo conveyer, the number is changed digitally, and the front waist is attached by servo positioning and cutting to ensure that the pattern is consistent with the phase.



Main Structural device:

1. Cell mill;

2. Suction fan;

3. Drum forming;

4. SAP applying applicator;

5. Tissue wrapping device;

6. Core compacting device;

7. Core cutting device;

8.Elastic waist applying device ;

9. Elastic ribbon unwinding device;

10. ADL applying device;

11. Cuff embossing device;

12. Frontal tape applying device;

13. Side tape applying device;

14. R cutting device;

15. Final cutting device;

16. Final folding device;

17. Waste rejecting device;

18. Safty door;



19. Stacker (to be ordered).



Main Technical Data



Working Speed(Production speed) 600pcs/minute
Working Speed(Linear web speed) 500pcs/minute
Power supply 380V 50HZ
Installation power capacity 400KW
Air consumption 1800~4800l/minute
Qualified rate ≥97%
Product size  S/M/L/XL
Product length(min~max) 320~550mm
Dimensions(L×W×H, Meters) L: 40
W: 8
H: 4.5
