Full Servo 380KW 500A Pant Type Baby Diaper Making Machine Price
Contact Person : Amy Woo
Phone Number : 0086-13599937366
WhatsApp : +8613599937366
| Minimum Order Quantity : | 1SET | Price : | Negotiatable |
|---|---|---|---|
| Packaging Details : | Seaworthy Packing | Delivery Time : | 5 Months After Receiving Deposit and Confirm Product Drawing |
| Payment Terms : | T/T | Supply Ability : | 70 Machines Per Year |
| Place of Origin: | JINJIANG, CHINA | Brand Name: | HAINA |
|---|---|---|---|
| Certification: | ISO9001:2015 | Model Number: | HNJX-LK500 |
|
Detail Information |
|||
| Diaper Type: | Pull-ups | Sizes: | S/M/L/XL |
|---|---|---|---|
| Condition: | New | Working Capacity: | 250-300kw |
| Working Speed: | 500pcs/min | Certification: | CE/ISO |
| Air Compressor:: | About 0.6-0.8Mpa (customer Prepared) | Voltage: | 380V, 50HZ |
| Origin: | Jinjiang, China | ||
| Highlight: | 700PPM Baby Diaper Manufacturing Machine,0.8Mpa Baby Diaper Manufacturing Machine,Tri Phase 0.8Mpa baby diaper machine |
||
Product Description

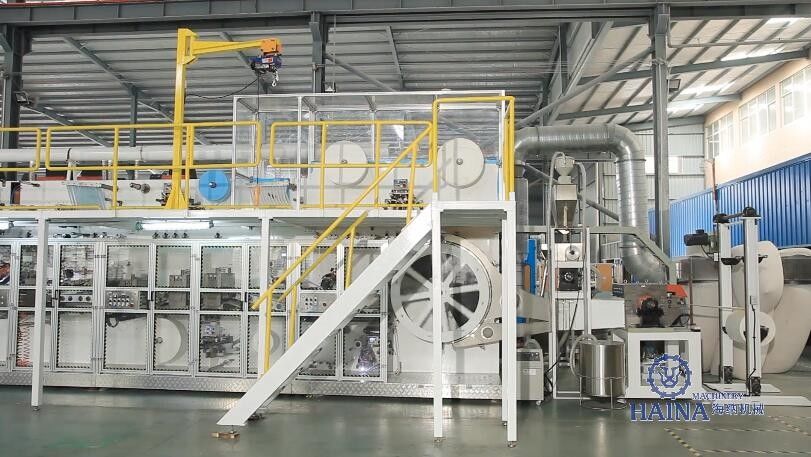

500-700PPM high performance new design baby diaper production line without stacker
| MAIN PARAMETERS | |
| Working Speed (production speed) | 500 pcs/minute |
| Power Supply | 380V 50/60HZ, Tri-phase |
| Installation Power Capacity | 380KW |
| Air Consumption | 1800~4800l/minute |
| Air Pressure | 0.6-0.8Mpa |
| Qualified Rate | ≥97% (excluding scrap caused by hot melt, materials splicing or joint) |
| Efficiency | ≥85% |
| Machine Weight | 100 Tons approximately |
| Machine Size (meters) | L: 39 W: 9 H: 4.5 |
| CONFIGURATION & OPTIONS | |
| Product Structure | Top sheet hydrophilic nonwoven, leak cuff hydrophobic nonwoven, ADL, Fluff core pad, SAP, Upper & lower tissue paper, Back sheet, Waist nonwoven, Leg & leak cuff elastics, Waistband |
| Product Size | M, L, XL, XXL |
| Product Specification | Width: 385-420mm Length: 400-550mm |
| MAIN CONFIGURATION | |
| Modular Design | Allow customized configuration for the specific product required. Retrofit and upgrade kits can be easily installed and tailored in order to meet customer’s requirements. |
| Compact Design | Smooth on-site start-up, easy operation and easy maintenance. |
| Full Servo | Each module is independently driven thus easing operators’ daily operations on the machine and ensuring adaptation to the raw materials used and environmental conditions. |
| Program System | Servo driven, intelligent HMI touch screen man-machine interface |
| Tension System | Tension control with buffer system, automatic web guiding system, to ensure materials stable working ar ZERO speed splice. |
| Driven System | Servo drive, digital size change, ensure run synchronously at full process. |
| Safety System | Safety guard for operating side, emergency stop switch, security identifier, safety pull wire at driven side. |
| Packaging System | Auto stacker to be defined by customer need (dual push dual exit). |
| Web Guiding System | Germany BST / USA FIFE |
| Product Detection System | Including the weight, metal, appearance, position |
| Customization | Available |
Company information
Jinjiang HAINA Machinery Co., Ltd (Haina) is a professional manufacturer of the production lines of baby diapers, adult diapers, sanitary napkins and panty liners. It was founded by a group of designers and engineers who have years of experience in the field. With our skills and our continuous desire for innovation, we aim to establish a long-term partnership with you by offering you customized solution for your specific products.
At present, our production lines are used both by domestic and international clients. We have achieved an excellent reputation in this business, and now, we are ready to work for you!
