Full Servo 380KW 500A Pant Type Baby Diaper Making Machine Price
Contact Person : Amy Woo
Phone Number : 0086-13599937366
WhatsApp : +8613599937366
| Minimum Order Quantity : | 1SET | Price : | Negotiatable |
|---|---|---|---|
| Packaging Details : | Seaworthy Packing | Delivery Time : | 5 Months After Receiving Deposit and Confirm Product Drawing |
| Payment Terms : | T/T | Supply Ability : | 70 Machines Per Year |
| Place of Origin: | JINJIANG, CHINA | Brand Name: | HAINA |
|---|---|---|---|
| Certification: | ISO9001:2015 | Model Number: | HNJX-LK500 |
|
Detail Information |
|||
| Product Size: | S/M/L/XL | Origin: | Jinjiang, China |
|---|---|---|---|
| Power: | 380V,50HZ | Efficiency: | ≥85% |
| Servo Type: | Full Servo | System: | Mitsubishi |
| Glue Applicator: | Nordson | Stacker: | With Or Without |
| Highlight: | 500PPM Baby Diaper Production Line,85% Baby Diaper Production Line,HAINA Machinery |
||
Product Description

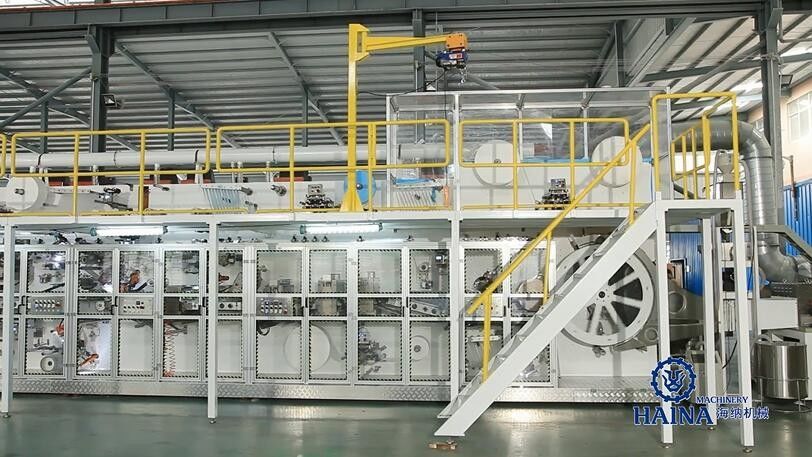

CNC Treatment 500ppm Pant Type Baby Diaper Production Line Without Stacker
Diaper Machine Main Features
1. High speed new condition servo baby diaper machine is suitable for manufacture kinds of pant shapes with different raw materials.
2. The baby diaper machine can produce both fluff pulp type & ultra thin diaper products with pull up and four sizes (S.M.L.XL) baby diaper products.
3. Servo motors driving with PLC control and touch screen.
4. High-speed teeth-like crusher.
5. Web-wheel molding.
6. Automatically detect and reject defective products and trim remove.
7. Automatically stop the diaper machine when material is broken or used out.
8. Human machine interface is controlled by touch screen.
9. Baby diaper machine with safety protective door.
10. All electric components are famous international brand.
11. Phase adjusting during running without stop.
12. Diaper tri-folding or bi-folding.
13. Diaper auto counting & stacking.
Main Specification
| NAME | Full Automatic Training pantsBaby Diaper Machine /Training Pants Baby Diaper Machine |
| Working speed | 500pcs/min(Small size) |
| Qualified rate | More than 97% |
| Efficiency | more than 85% |
| practical capacity | 300KW(Including hot melt system) |
| Electric power supply | Three-phase & fourwire 380V/50HZ(Ground wire) |
| Electric wire | 3x150mm2+1x60mm2+1x25mm2 |
| Air compressor | more than 0.6Mpa, 1.8m3/min, 22kw(to be reference) |
| Gross weight | 100tons |
| Machine size | (30Mx3Mx3.5M) |
| Working size | (40Mx8Mx4M) |
| Color | Customer selection |
| Range of products | Four Sizes ( XL,L,M,S) |
| Length of products(mm) | 540(XL),500(L),450(M),390(S) |
| Container | 8x40HQ |
Company Information
Jinjiang Haina Machinery Co.,Ltd (Haina) is a professional manufacturer of sanitary pad making machine, diaper making machine machine for ladies, babies and adults with special needs. The company was founded through one group of technicians and designers with experience in the production of machines for baby diapers, incontinence adult diapers, lady sanitary napkins and panty liners. We have achieved many milestones in this field thanks to our expertise as well as the support from all our clients.
From pre-sales advice, through production and supply of lines, to after-sales customer care, we can satisfy the most demanding application requirements. At Haina, we desire long-term strategic partnerships with you, meaning we continually work to meet your ever-changing requirements and help your business growth.
