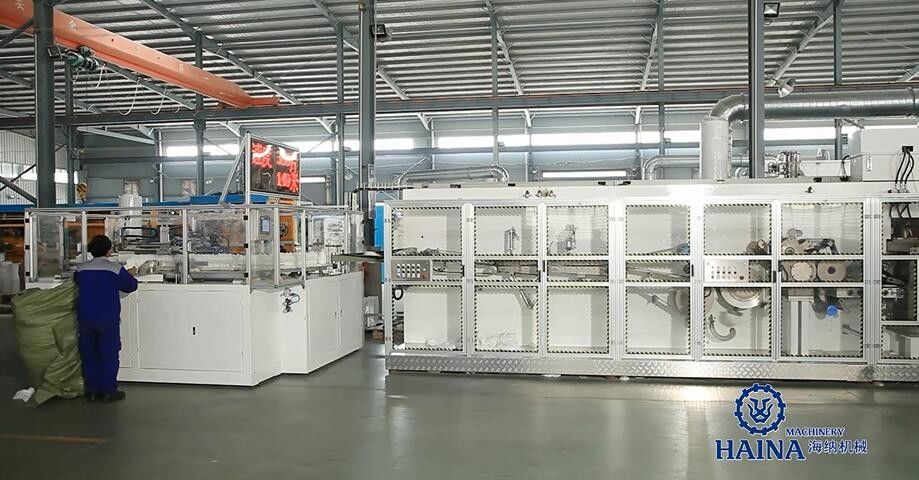

PLC Siemens System 100T 300kw Diaper Manufacturing Machine

Product Description

Remote Control High Speed Three Piece Pant Type Baby Diaper Production Line

Equipment Function

1. Full servo auto controlling system and 500 pcs/min high speed production.

2. With elastic fabric ear. Or elastic waistband, or pants type diaper for easy put on-off.

3. World famous brand components.

4. Easy Operating interface.

5. Can add optional functions and parts for detecting products, counting or stacking and packing etc.

Product Description

Configuration

1. Product structure: Top & bottom tissue(or airlaid), cotton core(mix with SAP), cover sheet hydrophilic nonwoven, ADL(acquisition distribution layer)nonwoven, leak cuff hydrophobic nonwoven, back sheet, waistline nonwoven, color pattern sticker, elastic waistline, discarding sticker.

2. Product size:3 sizes(M,L,XL),to be customized by the client requirement.

3. Control system:PLC programming control, HMI operation, LED digital display, graphic digitization control.

4. Tension system:Tension unwinding equipped, constant tension control with buffer system, automatic web guide system. The unwinding system ensure materials stable working at full speed splice, minimize the impact on materials tension force, to reduce downtimes.

5. Driver system:

Full servo drive, digital size change, ensure run synchronously at full process. Synchronous belt and flat belt are imported qualified brand. imported qualified brand. Imported bearing used in key position.

6. Safety system: Safety guard installed at the operating side, with security identifier, emergency stop switch at per segment, Driven side is equipped with the radiator system and safety pull wire.

7. Packaging system:Auto stacker with one push two exit(customized design)

8. Materials corrective system:Maxcess FIFE automatic web guide system

Optional Process Configurations

· Aloe/perfume application unit

· Gravimetric SAP dosing unit

· Full servo auto stacker

· Camera quality detection unit
