S - XXL Baby Diaper Machinery 600pcs/min With Auto Bagger
Contact Person : Amy Woo
Phone Number : 0086-13599937366
WhatsApp : +8613599937366
| Minimum Order Quantity : | 1 SET | Price : | Negotiable |
|---|---|---|---|
| Packaging Details : | Film wrapped | Delivery Time : | 150 Days |
| Payment Terms : | T/T | Supply Ability : | 72 SETS / YEAR |
| Place of Origin: | CHINA | Brand Name: | HAINA |
|---|---|---|---|
| Certification: | CE | Model Number: | HNJX-UNK600 |
|
Detail Information |
|||
| Automatic Grade: | Full Automatic | Design Speed: | 600 PPM |
|---|---|---|---|
| Stable Production Speed: | 550 PPM | Air Pressure: | 0.6 - 0.8 Mpa |
| Product Structure: | Fluff Type | Efficiency: | ≥85% |
| Data Setting: | PLC Touch Screen | Condition: | New |
| Highlight: | CE High Speed Diaper Making Machine,3 Phase Diaper Making Machine,Full Servo Diaper Making Machine |
||
Product Description

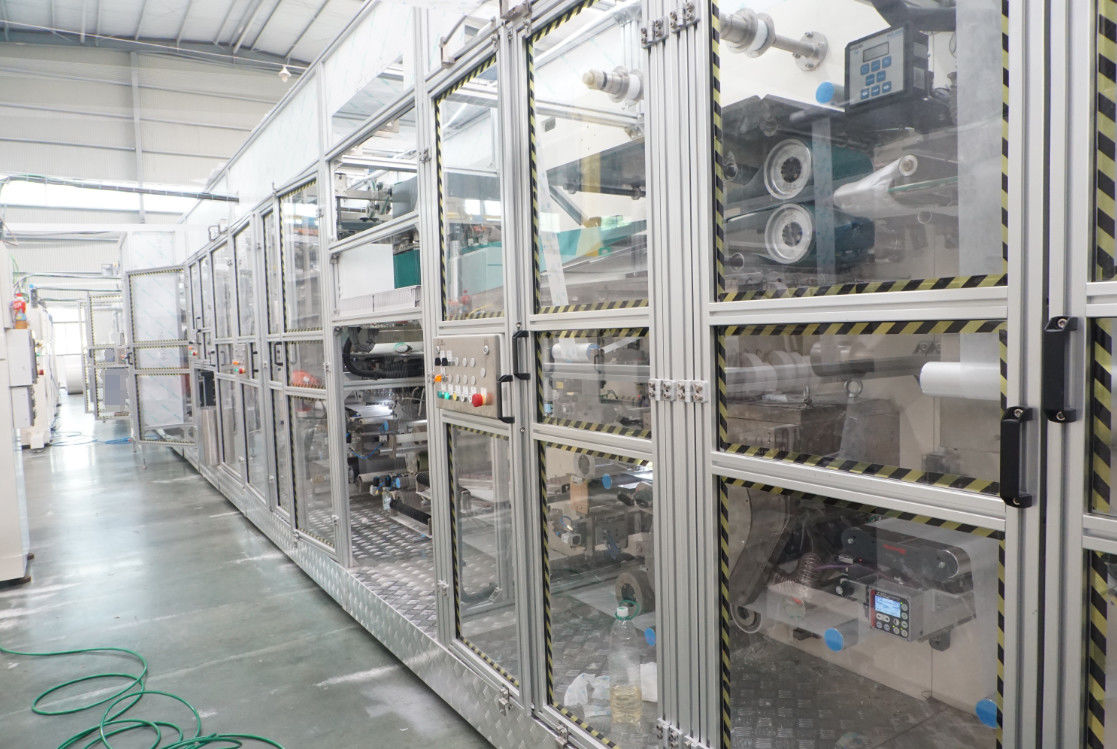

High Speed I Shape Full Servo Baby Diaper Machinery With Elastic Waist Band
Machine Main Parameters:
| Machine | Full Servo High Speed 600 pcs/min Baby Diaper Machinery I Shape |
| Model | HNJX-UNK600 |

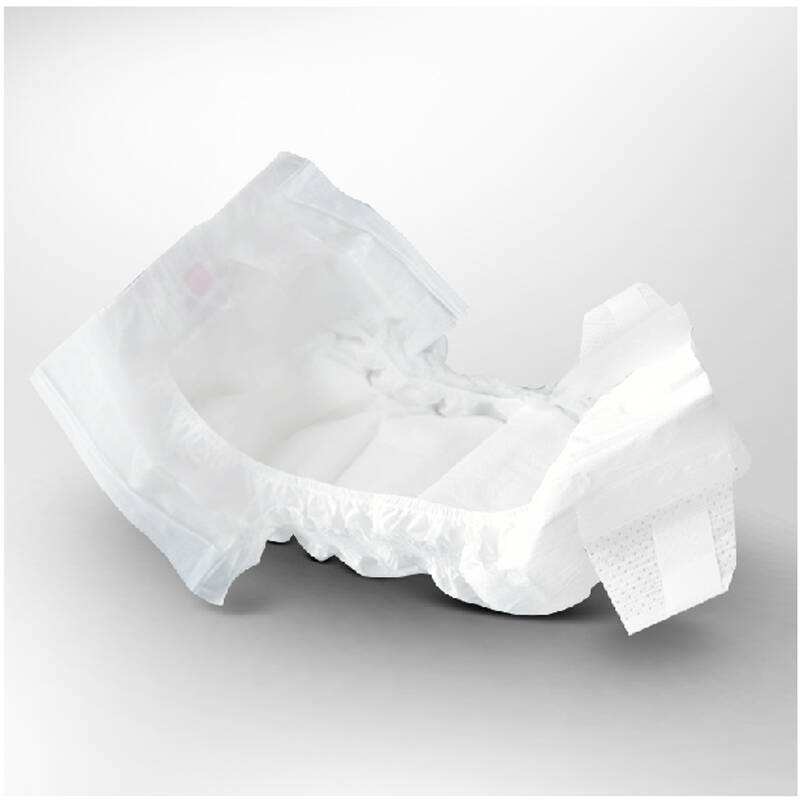

| Products | Baby Diaper |
| Products Structure | Upper & Lower tissue paper, Cotton core ( mix with SAP), ADL, PE film, frontal tape, topsheet hydrophilic nonwoven, leg cuff hydrophobic nonwoven, S cut side tape, waistband online. |
| Product Size | NB, S, M, L, XL, XXL |
| Glue Machine | Nordson / Chinese Brands Optional |
| Design speed | 600 pcs/min |
| Production speed | 500 pcs / min |
| Defective rate | ≤3% |
| Efficiency | ≥85% |
| Power Supply | 3 Phase 380VAC, 50HZ (base on customer local power) |
| Total Weight | 100 T customized |
| Power | ~300KW |
| Required Air Compressor | 2m³/min, 0.6-0.8Mpa |
| Dimension | L~42m,W~8.0,H~4m |
| Machine direction | From right to left or left to right (According to the customer requirements) |
| Color | Customized |
Systems:
1. Program system: Servo driven, intelligent HMI TOUCH screen man-machine interface
2. Tension system: Tension control with buffer system, automatic web guiding system, to ensure materials stable working at zero speed splice
3. Driven system: Servo drive, digital size change
4. Safety system: Safety guard for operating side, emergency stop switch, security identifier, safety pull wire at driven side
5. Auto packing system: Auto stacker and packing machine to be defined by customer need
6. Web guider system: BST Germany or FIFE USA
7. Visual system: Running data and alarm content can be online display, making operation more convenient
About Haina Machinery:
1. Jan. 2011, Haina was established in Jinjiang City, Fujian Province.
2. Nov. 2011, Haina started R&D for the class pull-up baby diaper production line.
3. Jun. 2012, We finished production of class pull-up baby diaper production line.
4. Mar. 2013, Finished production of our full surrounded baby diaper production line.
5. Sept. 2013, Recognized as National level high-new technology enterprise.
6. Nov. 2013, We got CE certificate.
7. Dec. 2014, R&D and finished production of new type pull-up production line.
8. Feb. 2014, U-type hourglass baby diaper production line was delivered.
9. Dec. 2015, Adult pants production line was delivered.
10. Jul. 2016, Sold machines to Hengan Group-No.1 hygiene factory in China.
11. Apr. 2016, HANGZHOU HAINA (second branch) was established.
12. Jun. 2020, Haina is successful to be listed on HongKong Stock exchange market
Haina Machinery's development is surprised, it developed very fast in 10 years, and earn customers' great recognition. Especially Haina was successful to be listed on HongKong Stock exchange market and in 2020, we received the orders of more than 90 machines.
Haina After Sales Service:
A full range of after-sales services is always provided by Haina engineers:
1. Provide training service for customer technicians. Within one month from the date of delivery of the machine, you can send technicians to our factory to learn how to operate the machine. We can provide food and lodging.
2. We will send our technicians to customer factory for assistant and install and debug the machines.
3. If you need a Chinese technician to work in your factory for a long time, we can help you, because we have a long-term cooperative relationship with them.
4. One year warranty.
5. Life long after-sales and components sourcing for customer.
Proudly, Haina engineers also assist customers solve some issues through remote instructions. Remote assistance dealing with software problem to give you the efficient after-sale service with no production delayed. Customers appreciated our team very much.
Accessory equipment
(Need to purchase separately, you can ask Haina to purchase them for you or you purchase them by yourself)
1. Stain camera system
2. Air compressor
3. Dust collector Equipment
4. Metal detecting instrument
5. Ink-jet printer
6. Perfume spray device
7. Soundproof room
