Full Servo 380KW 500A Pant Type Baby Diaper Making Machine Price
Contact Person : Amy Woo
Phone Number : 0086-13599937366
WhatsApp : +8613599937366
| Minimum Order Quantity : | 1SET | Price : | Negotiatable |
|---|---|---|---|
| Packaging Details : | Seaworthy Packing | Delivery Time : | 5 Months After Receiving Deposit and Confirm Product Drawing |
| Payment Terms : | T/T, L/C | Supply Ability : | 70 Machines Per Year |
| Place of Origin: | JINJIANG, CHINA | Brand Name: | HAINA |
|---|---|---|---|
| Certification: | ISO9001:2015 | Model Number: | TK500 |
|
Detail Information |
|||
| Brand: | Haina Machinery | Condition: | New |
|---|---|---|---|
| Origin: | Jinjiang, China | Dimension: | 40m*8m*3.5m |
| Leadtime: | 150 Days After Deposit | Machine Grade: | Full Servo |
| Highlight: | Nonwoven Topsheet Baby Diaper Production Line,Baby Diaper Production Line 300KW,Nonwoven Topsheet Diaper Manufacturing Plant |
||
Product Description

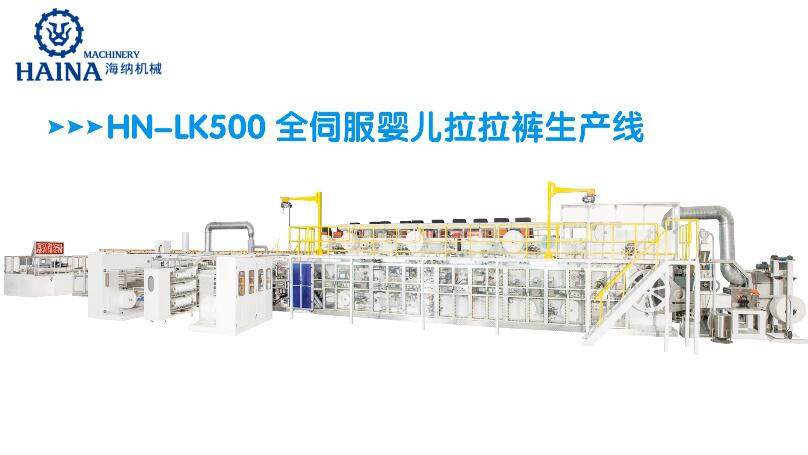

High Speed Baby Pant Type Baby Diaper Prodcution Line With Stacker And With Auto Bagger
Systems:
1. Program system: Servo driven, intelligent HMI TOUCH screen man-machine interface
2. Tension system: Tension control with buffer system, automatic web guiding system, to ensure materials stable working at zero speed splice
3. Driven system: Servo drive, digital size change
4. Safety system: Safety guard for operating side, emergency stop switch, security identifier, safety pull wire at driven side
5. Auto packing system: Auto stacker and packing machine to be defined by customer need
6. Web guider system: BST Germany or FIFE USA
7. Visual system: Running data and alarm content can be online display, making operation more convenient
Machine Specification
| Machine | Full Servo |
| Model | HNJX-LK500 |
| Products | Baby Diaper |
| Products Structure | Upper & Lower tissue paper, Cotton core ( mix with SAP), ADL, PE film, frontal tape, topsheet hydrophilic nonwoven, leg cuff hydrophobic nonwoven, S cut side tape, waistband online. |
| Product Size | M, L, XL, XXL |
| Glue Machine | Nordson / Chinese Brands Optional |
| Design speed | 600 pcs/min |
| Production speed | 500 pcs / min |
| Defective rate | ≤3% |
| Efficiency | ≥85% |
| Power Supply | 3 Phase 380VAC, 50HZ (base on customer local power) |
| Total Weight | 100 T customized |
| Power | ~300KW |
| Required Air Compressor | 2m³/min, 0.6-0.8Mpa |
| Dimension | L~42m,W~8.0,H~4m |
| Machine direction | From right to left or left to right (According to the customer requirements) |
| Color | Customized |
