HAINA Full Servo 0.6Mpa 100T Adult Diaper Production Line

Minimum Order Quantity : 1 Set Price : Negotiable
Packaging Details : Packed by international standard, anti-rusty treated and wrapped film packing. Delivery Time : 180 work days
Payment Terms : T/T Supply Ability : 6 Sets per 1 Month
Place of Origin: CHINA Brand Name: HAINA
Model Number: HNJX-CK300

Detail Information

Design Speed: 300PPM Stable Speed: 250PPM
Product Size: XL/L/M/S Product Weight Tolerance: ±5%
Wastage: ≤4.0%(Excluding Glue, Splice, Raw Jointer Defectives) Efficiency: ≥85%
Installation: 335KW(glue Machine & Air Compressor Not Included) Power Supply: 380 /440V 、50/60Hz (3 Phases, 4 Lines, Ground-in)
Air Compressor: 0.6-0.8Mpa Machine Sizes: 38m×8m×4.5m(Including Mill, Pulp & Stacker)
Highlight:

0.6Mpa 100T Adult Diaper Production Line

,

100T Adult Diaper Production Line

,

HAINA diaper production machine

Product Description

Dual Drums High Performance Adult Diaper Making Machine





Main Parameters



Overall size 38m×8m×4.5m(Including Mill, Pulp & Stacker)
Design speed 300PPM
Stabe work speed 250PPM
Rejection rate ≤4.0%(Excluding Glue, Splice, Raw Jointer Defectives)
Effciency ≥85%
Power source 380 /440V ,50/60Hz (3 Phases, 4 Lines, Ground-in)
Machine capacity 335KW(glue Machine & Air Compressor Not Included)
Air pressure 0.6-0.8Mpa
Machine weight 95-105Tons approxmatey

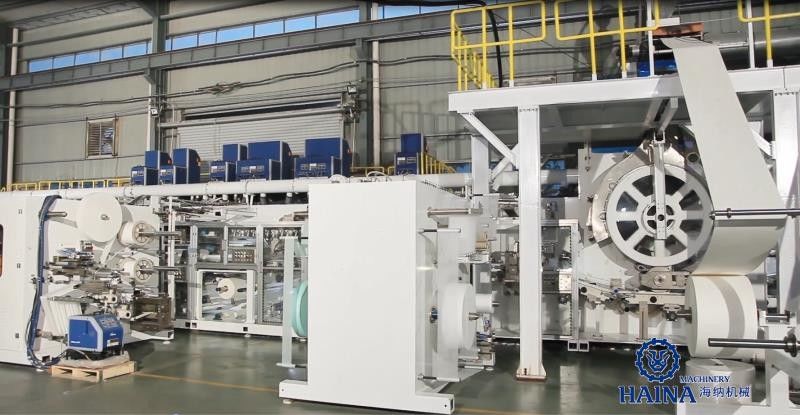

HAINA Full Servo 0.6Mpa 100T Adult Diaper Production Line 0

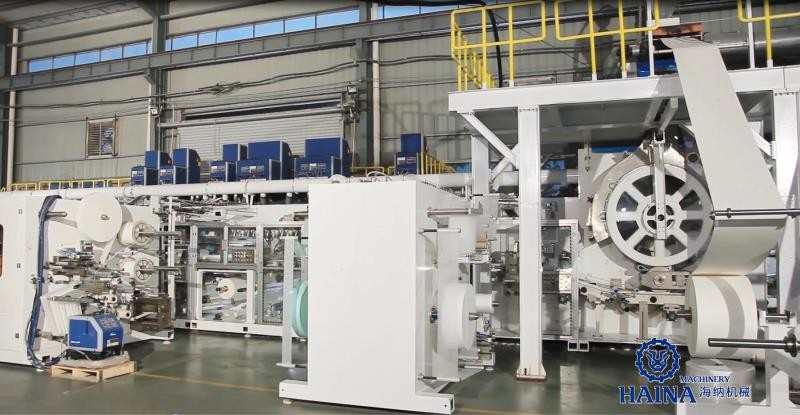

HAINA Full Servo 0.6Mpa 100T Adult Diaper Production Line 1

Configuration&Options



Product structure Leg cuff hydrophobic nonwoven.Top sheethydrophillc nonwoven.ADL,Cotton core(SAPmixed)Side tape,Waistband,Frontal tape,Back sheet
Product size M:680*450(mm)   L:800*650(mm)   XL:950*760(mm)
Program system Servo driven,intelligent HMI touch screen man-machine LCD interface.
Tension system Tension control with buffer system,automatic web guiding system.to ensure materials stable working at ZERO speedsplice
Driven system Servo drive.digital size chango.ensure run synchronously at full process.
Safety system Safety guard for operating side,emergency stop switch,security identifier,safety pull wire at driven side.
Packaging system Auto stacker to be defined by customor need (dual push dual exit),the stacking range:8-16pcs/pack adjustable.
Web guiding system Gemany BST/USA FIFE
Customized function available



Customer Distribution



    At Present, Our Production Lines Are Used By Domestic High End Users, And Others Exported To South Asia, Southeast Asia, Middle East, South America, Africa And So On. Till Now, Total 120 Sets Of Our Machines Are Satisfied Using By Our Local And Overseas Customers. Now We Have Won Excellent Reputation In This Industry By Superb Professional Technology And Extremely High Level Of After-Sales Service.

HAINA Full Servo 0.6Mpa 100T Adult Diaper Production Line 2
