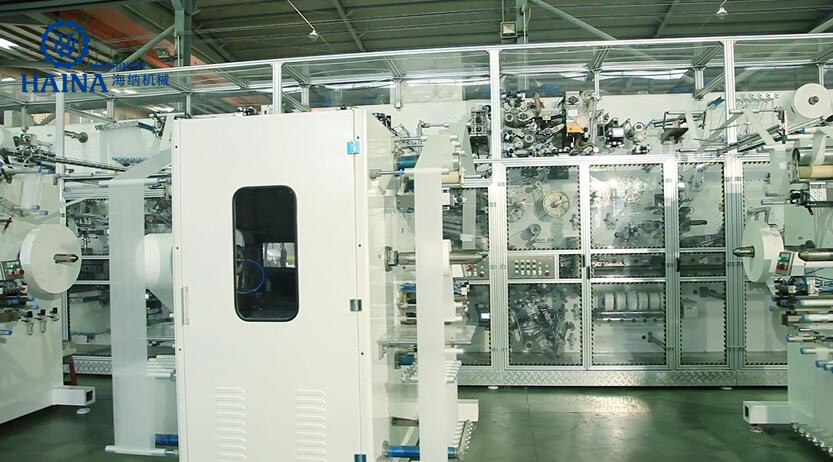

ISO9001 90 Tons 600PPM Diaper Manufacturing Machine

Minimum Order Quantity :	1SET	Price :	Negotiatable
Packaging Details :	Seaworthy Packing	Delivery Time :	5 Months After Receiving Deposit and Confirm Product Drawing
Payment Terms :	T/T	Supply Ability :	70 Machines Per Year

Place of Origin:	JINJIANG, CHINA	Brand Name:	HAINA
Certification:	ISO9001:2015	Model Number:	HNJX-TK500

Detail Information
Diaper Size:	S/M/L/XL	Core Forming:	Pulp&Ultra Thin
Direction:	From R To L	Color:	Customized
Condition:	New	Efficiency:	≥85%
Wastage:	≤3%	Dimension:	35m8.5m4.5m
Highlight:	600PPM Diaper Manufacturing Machine , ISO9001 90T Diaper Manufacturing Machine , 90T adult diaper machine

Product Description

High Efficiency Low Wastage T Shape Diaper Manufacturer Machine For Factory

Basic process configuration:

High speed pulverizer(untreated
pulp is allowed)
Fluff forming unit
SAP dosing unit
Raw material feeding units
Elastic ear application unit
Notch cutter Unit
Longitudinal folding unit
Final cutter unit
Transverse folding unit
Air application unit
Safety protection unit

Production Name	Full servo baby diaper Machine
Control System	Full servo control (Mitsubishi brand from Japan) + PLC
Material	45# Steel
Machine System(For new machine)	Customized Option A: Mitsubishi Option B: Simens
Designed Production speed	600pcs/min
Stable Production Speed	500pcs/min
Glue machine	Customized Option A: Chinese glue machine(Cost-effective) Option B: Nordson machine
Web guide	Customized BST web guide(or other brands)
Working space	35m9m5m(LWH)
Electric wire	3×120mm2+1×50mm2+1×25mm2
Certificate	CE
Other Service	Engeering

Main Technical parameters

1. Supply,3 phase,380V,50Hz
2. Power:420KW(Excluding hot melt applicator and Compressor)
3. Production speed:500pcs/min
4. Qualification:≥97%
5. Outside dimension(m):35 x 9 x 5 (L×W×H)( for reference)

Main Functions and Features

(I) Mechanical part

1. Pulp SAP mixing product and laminating core product are compatible
2. High-density ultra-thin fluff core forming drum system, good absorbability,and low reverse osmosis
3. Pulp,SAP in ruled quantity apply, high and low speed uniform mixing distribution
4. 3D material online making application (option)
5. Zero no lower speed auto-splicing system
6. S cut side tape online making, no waste application
7. Top sheet 3-pcs laminating ultrasonic process(option)
8. Float core process(anti-folding surface)
9. With web guiding system
10. Packing machine or stacker (option)
11. Dust collection filter system (option)

(II) Electric part

1. Full servo motor drive and PLC control( CE standard)
2. One button for size change, with size change home point return(HPR) function

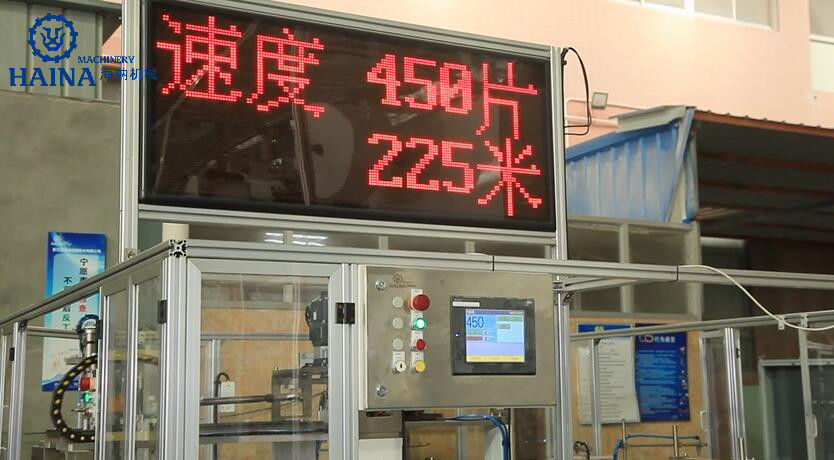

3. Touching screen,graphical, parametric operation, alarm information display on TV screen
4. Material picture ruled position application
5. Total production data collection
6. Local remote parameter setting
7. Machine running station real-time monitoring, and maintenance reminder
8. Supply MES data interface, realize machine remote monitoring and maintenance
9. Material auto-splicing joint limit at 3m, and decrease material wastage
10. Material auto-splicing inspect,broken and lost alarm system
11. High speed rejection system
12. Vision inspection system (option)

Our workshop
