320KW 500pcs/Min Elastic Ear T Shape Diaper Manufacturing Machine
Contact Person : Amy Woo
Phone Number : 0086-13599937366
WhatsApp : +8613599937366
| Minimum Order Quantity : | 1SET | Price : | Negotiatable |
|---|---|---|---|
| Packaging Details : | Seaworthy Packing | Delivery Time : | 5 Months After Receiving Deposit and Confirm Product Drawing |
| Payment Terms : | T/T | Supply Ability : | 70 Machines Per Year |
| Place of Origin: | JINJIANG, CHINA | Brand Name: | HAINA |
|---|---|---|---|
| Certification: | ISO9001:2015 | Model Number: | HNJX-TK500 |
|
Detail Information |
|||
| Condition: | New | Product Size: | S/M/L/XL |
|---|---|---|---|
| Voltage: | 380V, 50HZ | Power: | 250-300kw |
| Processing Type: | Pulp Molding Machine | Dimension: | 35m*8m*5m |
| Weight: | 90tons | Certification: | ISO/CE |
| Highlight: | 380V T Shape Diaper Production Machine,2.2m3/Min diaper making machine,Remote Control Diaper Production Machine |
||
Product Description

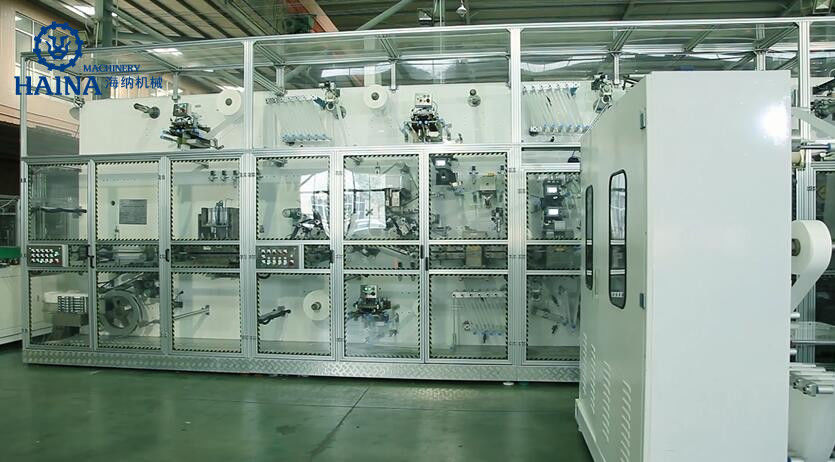

2020 Remote Control Zero Wastage T Shape Diaper Manufacturing Machine
Main Information
MODEL HNJX-TK500
Designed speed /min
Stable speed 450PCS/min
Qualified rate 97% (qualified products to gross output products within 7.5 hours)
Efficiency ≥ 85%(actual output to standard output within 7.5 hours)
Installation capacity 280KW (including glue applicators)
Practical capacity 300KW (including glue applicators)
Breaker 600A
Electricity 3 phase 4 lines 380V± 5%, 50Hz(ground)
Cable 3× 120 mm2+1× 50 mm2+1× 25 mm2
Air compressor >0.6Mpa, 2.2 m3/min, 22kw(for reference)
Total weight 80T
Machine size 34× 8m× 5m
Working size 36m× 12m× 4m
Product size S, M, L, XL, XXL
Main Configuration
| Modular Design | Allow customized configuration for the specific product required. Retrofit and upgrade kits can be easily installed and tailored in order to meet customer’s requirements. |
| Compact Design | Smooth on-site start-up, easy operation and easy maintenance. |
| Full Servo | Each module is independently driven thus easing operators’ daily operations on the machine and ensuring adaptation to the raw materials used and environmental conditions. |
| Program System | Servo driven, intelligent HMI touch screen man-machine interface |
| Tension System | Tension control with buffer system, automatic web guiding system, to ensure materials stable working ar ZERO speed splice. |
| Driven System | Servo drive, digital size change, ensure run synchronously at full process. |
| Safety System | Safety guard for operating side, emergency stop switch, security identifier, safety pull wire at driven side. |
| Packaging System | Auto stacker to be defined by customer need (dual push dual exit). |
| Web Guiding System | Germany BST / USA FIFE |
| Product Detection System | Including the weight, metal, appearance, position |
| Customization | Available |
