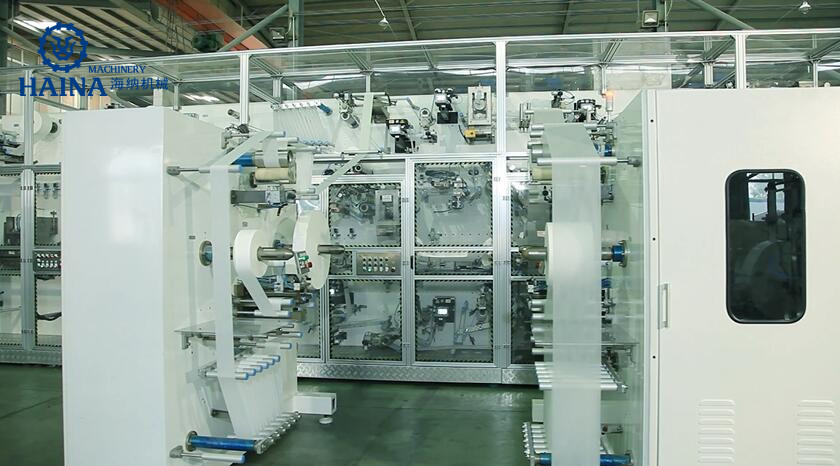

Full Servo 280KW 450pcs/Min Diaper Manufacturing Machine

Minimum Order Quantity :	1SET	Price :	Negotiatable
Packaging Details :	Seaworthy Packing	Delivery Time :	5 Months After Receiving Deposit and Confirm Product Drawing
Payment Terms :	T/T	Supply Ability :	70 Machines Per Year

Place of Origin:	JINJIANG, CHINA	Brand Name:	HAINA
Certification:	ISO9001:2015	Model Number:	HNJX-TK500

Detail Information
Design Speed:	500pcs/min	Working Speed:	450pcs/min
Product Size:	S/M/L/XL	Voltage:	380V, 50HZ
Power:	250-300kw	Efficiency:	≥85%
Wastage:	≤3%	Color:	Customized
Highlight:	450pcs/min Diaper Manufacturing Machine , 280KW Diaper Manufacturing Machine , 450PPM small scale diaper making machine

Product Description

2020 Customized Full Servo T Shape Diaper Manufacturing Machine

Product Description

Configuration

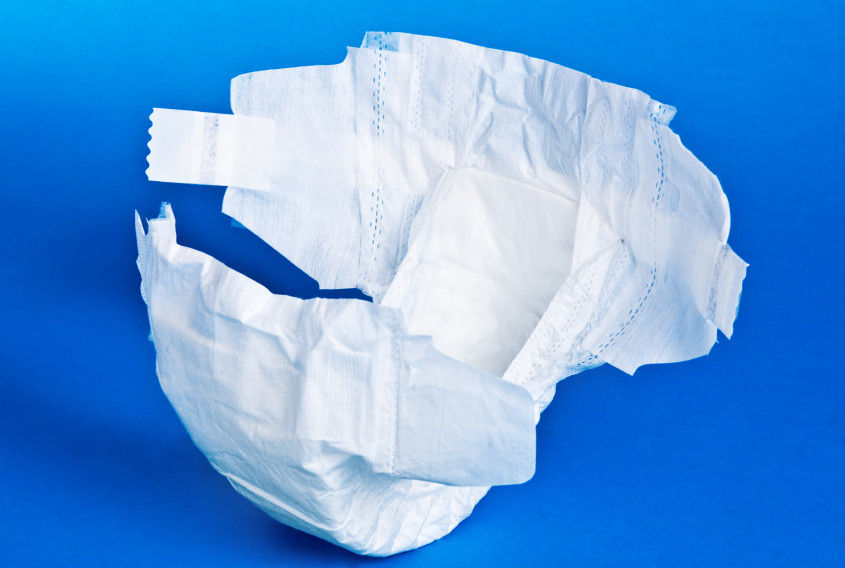

Product structure	Up&Down Tissue fluff core(with SAP),ADL,Back sheet,Front tape,Tos sheet,Leg cuff N.W.,Side tape,Wasitband.
Product size	S:390x280 M:450x320 L:500x320 XL:525x330
Control system	PLC control system,operationg on the touch screen,man-machine interface match with a LED digital display to control the production by pattem digitization.
Tension system	Up&Down Tissue,ADL,Back sheet,Top sheet,Cuff N.W.are adopt A&B shaft active unwinding by inverter motor
Drive system	3-Shaft Mechanical Drive,Semi Servo,Full Servo can be choose by customer's requirement.
Safety system	It has safety device on the operating side,Matched with urgent stop switch.High audio fan uses sound insulationor silencer
Packing way	Equipped withthe stacker at the request of client.
Materials corrective system	BST Germany BST actomatic web guide system(optional)

Main Parameter
Overall size (LxWxH)	24m x 4m x 3.6m
Machine size(LxWxH)	22mx2.1mx3.3m (based on the product provided by client)
Design speed	500pcs per minute
Stable work speed	450pcs per minute
Pass percentage	97%
Work efficiency	85%-90%
Power source	380v, 50HZ(3phase,4lines+ground wire)
Machine capacity	About 280kw
Air pressure	0.6-0.8Mpa
Machine weight	About 85T

Packaging

Antirust oil & wrapping film cover.

After sales service

Video technical support, online remote control support, field installation support, commissioning and training, field maintenance and repair service.
