85% Efficiency Nonwoven Pulp Diaper Manufacturing Plant With Stacker

Minimum Order Quantity :	1SET	Price :	Negotiatable
Packaging Details :	Seaworthy Packing	Delivery Time :	5 Months After Receiving Deposit and Confirm Product Drawing
Payment Terms :	T/T	Supply Ability :	70 Machines Per Year

Place of Origin:	JINJIANG, CHINA	Brand Name:	HAINA
Certification:	ISO9001:2015	Model Number:	HNJX-LK500

Detail Information
Condition:	New	Efficiency:	≥85%
Wastage:	≤3%	Warranty:	1 Year
Raw Materials:	Nonwoven/Pulp/SAP/Pe Film	Sizes:	S/M/L/XL
Certification:	CE/ISO	Weight:	90tons
Highlight:	Nonwoven Pulp diaper manufacturing plant , 85% Efficiency diaper manufacturing plant , Automatic stacking diaper production line

Product Description

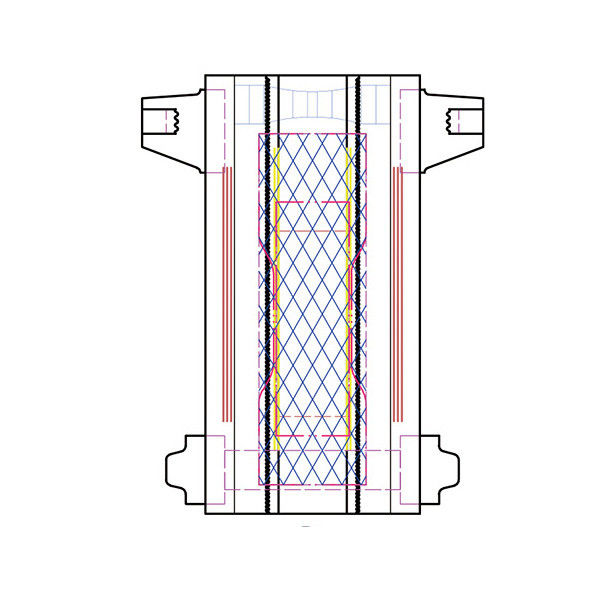

Easy Operation East Ear T Shape Type Diaper Manufacturing Machine With Stacker

Main technical Parameters

1	Design speed	500pcs/min
2	Working speed	450pcs/min
3	Qualified rate	≥ 97% (exclude the wastage due to the glue applicators and materials splicing joint)
4	efficiency	≥ 85%
5	installation capacity	≥300KW
7	Electricity	380V ±5%,50HZ
8	Wire	Three phases four wires 380V/50Hz (ground wire) 3X120mm³+1X50mm³+1X25mm³
9	Air pressure	≥0.8Mpa 2.6m³/min
10	Total weight	About 85tons
11	Machine size	32×8×5 M(L×W×H)
12	Working space	38×12×8 M (L×W×H)
13	Machine color	Customized
14	Product size	4 size,S,M,L,XL(according to order)
15	Containers	Packaging: PE cover packing in container

MAIN CONFIGURATION
Modular Design	Allow customized configuration for the specific product required. Retrofit and upgrade kits can be easily installed and tailored in order to meet customer’s requirements.
Compact Design	Smooth on-site start-up, easy operation and easy maintenance.
Full Servo	Each module is independently driven thus easing operators’ daily operations on the machine and ensuring adaptation to the raw materials used and environmental conditions.
Program System	Servo driven, intelligent HMI touch screen man-machine interface
Tension System	Tension control with buffer system, automatic web guiding system, to ensure materials stable working ar ZERO speed splice.
Driven System	Servo drive, digital size change, ensure run synchronously at full process.
Safety System	Safety guard for operating side, emergency stop switch, security identifier, safety pull wire at driven side.
Packaging System	Auto stacker to be defined by customer need (dual push dual exit).
Web Guiding System	Germany BST / USA FIFE
Product Detection System	Including the weight, metal, appearance, position
Customization	Available

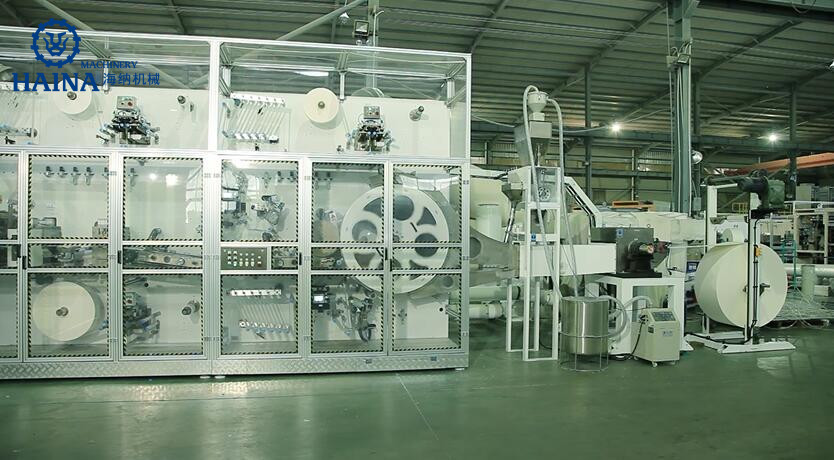

Our workshop

85% Efficiency Nonwoven Pulp Diaper Manufacturing Plant With Stacker 0

85% Efficiency Nonwoven Pulp Diaper Manufacturing Plant With Stacker 1
